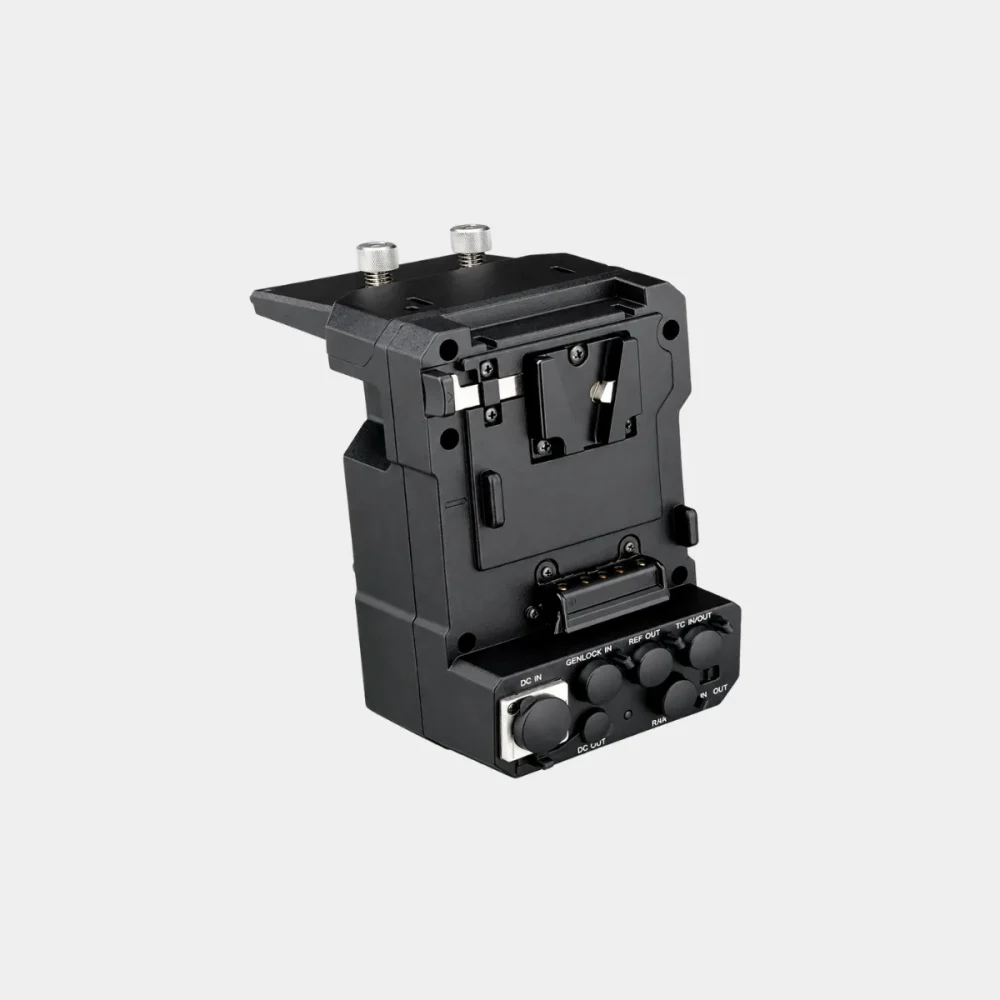

XDCA-FS7 Extension Unit
Specifications
- Attaches to the PXW-FS7 on a MultiPin connector
- Full HD Apple ProRes 422 encoding to the camera's XQD card
- 12-bit RAW output, timecode and genlock, V-mount battery mount
The Sony XDCA-FS7 is an extension unit for the PXW-FS7 camcorder, attaching to the back of the camera through a MultiPin connector rather than a cable loom. A built-in Full HD Apple ProRes 422 encoder records ProRes files to the XQD card in the camera. The unit also carries the FS RAW interface, which outputs 12-bit RAW to an AXS-R5 with HXR-IFR5 or to a third-party RAW recorder. It adds timecode and genlock connectors for multi-camera work, takes V-mount batteries and provides power for accessories.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
