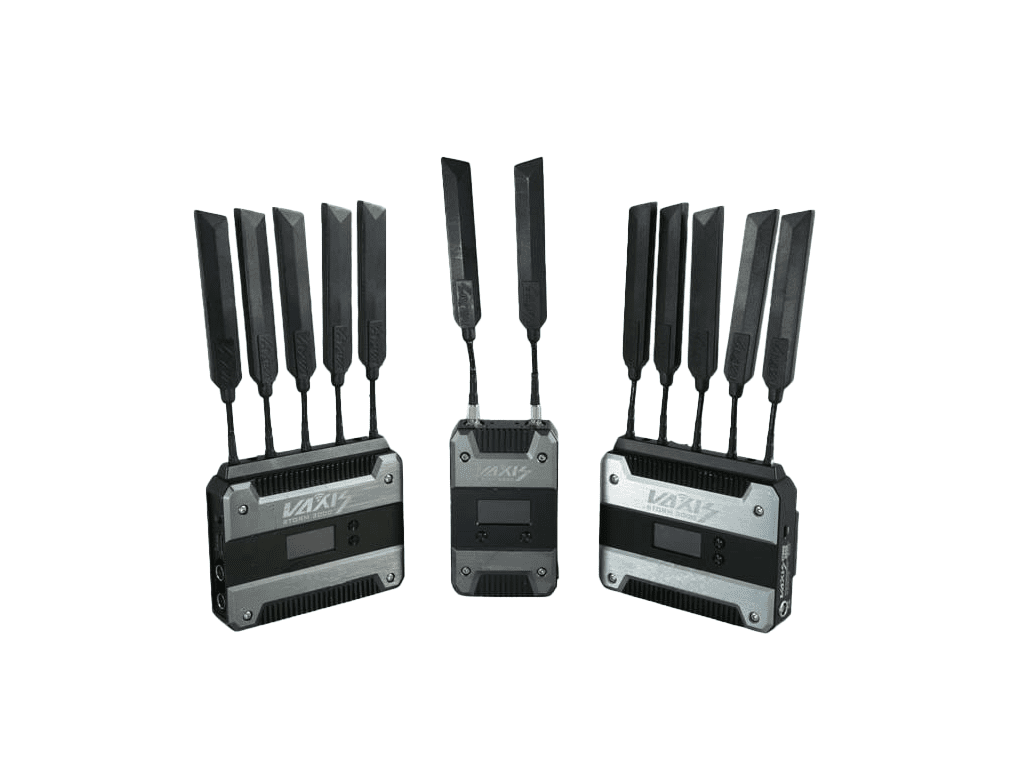

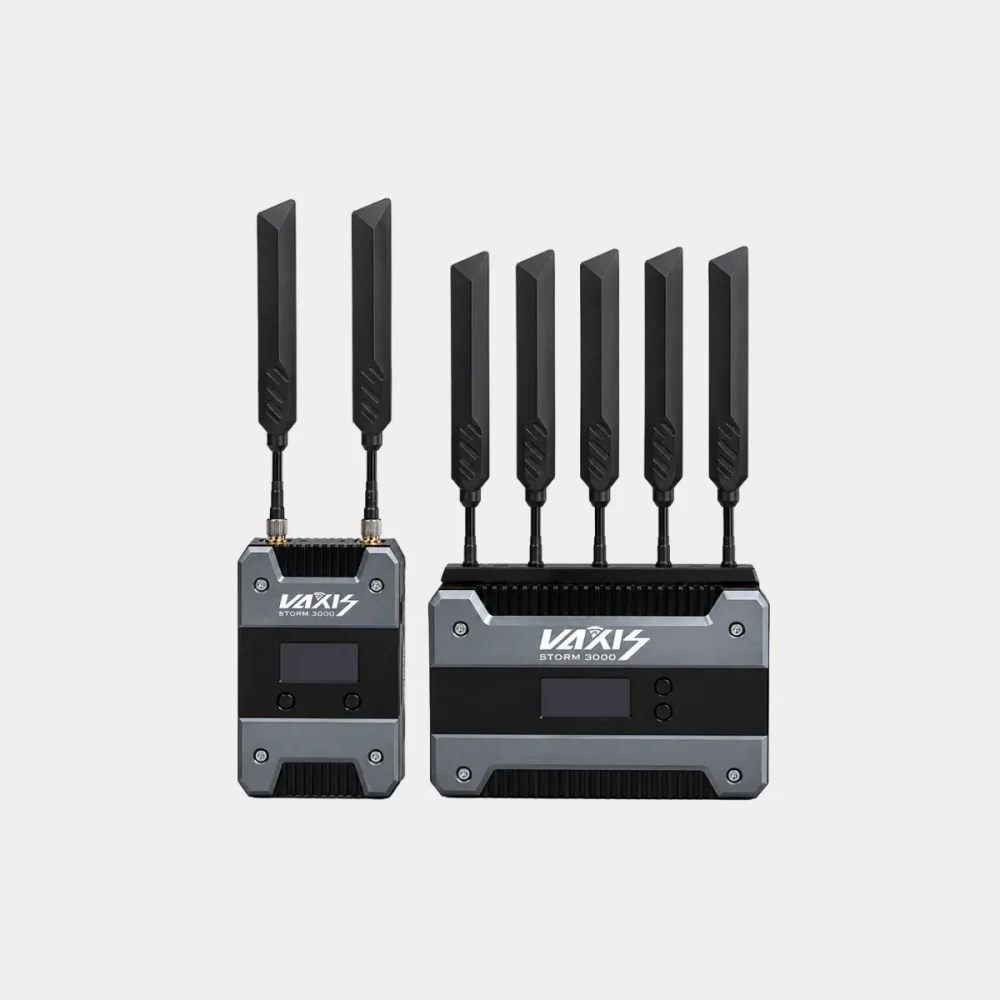

Vaxis Storm 3000 Kit
Specifications
- Range 3,000 ft (914 m); up to 1080p60 uncompressed
- 3G-SDI and HDMI in; 2 x SDI and HDMI out
- 20 x 40 MHz channels, 5.1 - 5.9 GHz
The Vaxis Storm 3000 DV is a wireless video transmission kit pairing a V-mount transmitter with a Storm 3000 receiver, quoted at a range of 3,000 ft (about 914 m). The transmitter takes one 3G-SDI and one HDMI input and has an SDI loop output, while the receiver gives two SDI outputs and an HDMI output. The link carries uncompressed video up to 1080p60 across 20 selectable 40 MHz channels between 5.1 and 5.9 GHz. Both units run from V-mount batteries or from continuous power on a 2-pin LEMO input, and each has a 1/4" - 20 mounting thread.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
