Sony HXC100SD Triax Camera Channel Kit
Specifications
- 3 x 2/3" Power HAD FX CCDs, 1920 x 1080 effective
- 14-bit A/D; sensitivity F11 at 50 Hz (2000 lx)
- Digital triax up to 1200 m, HD-SDI/SD-SDI selectable

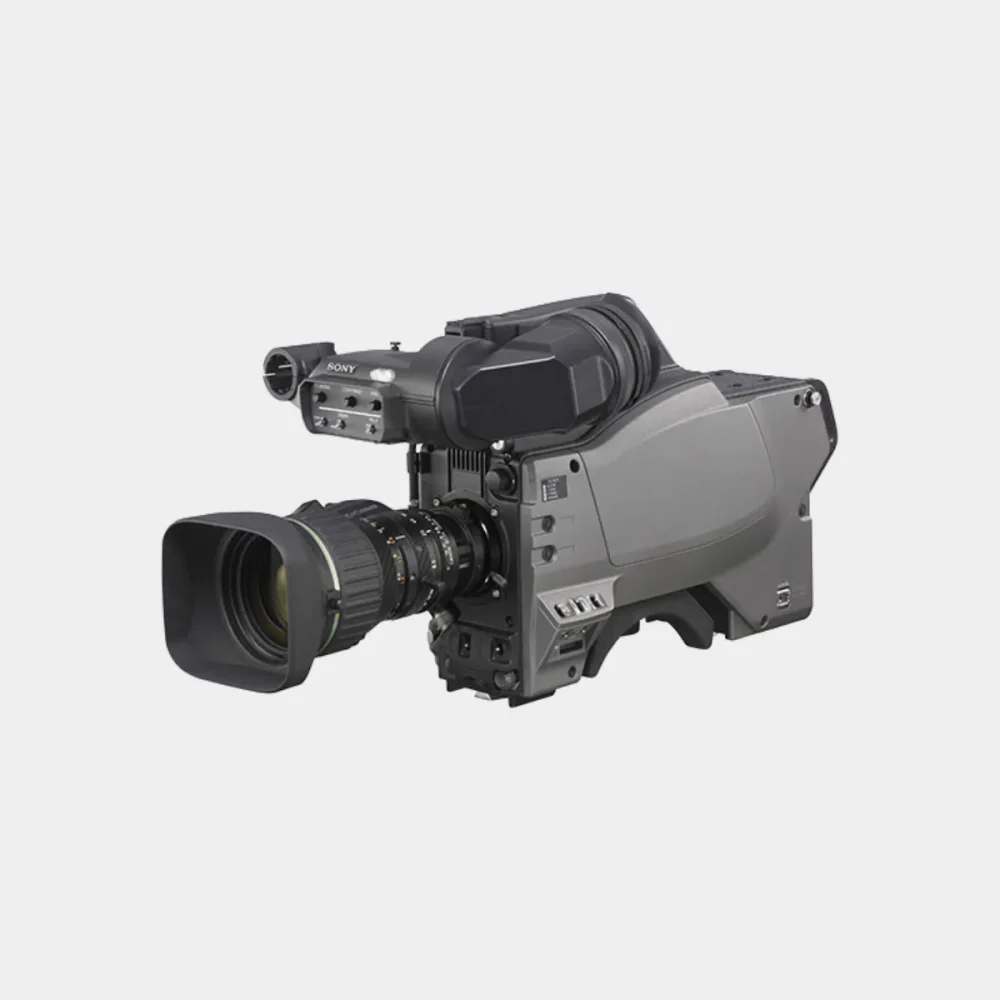

The Sony HXC-100 is a triax-connected HD/SD system camera with three 2/3-inch Power HAD FX CCDs, 1920 x 1080 effective pixels and 14-bit A/D conversion. It pairs with the 1.5 RU HXCU-100 camera control unit over a digital triax link of up to 1200 m, with HD-SDI and SD-SDI selectable at the CCU. Capture formats are 1080/50i, 1080/59.94i, 720/50P, 720/59.94P, 576/50i and 480/59.94i, sensitivity is F11 at 50 Hz at 2000 lx, and the filter wheel carries clear, 1/4, 1/16 and 1/64 ND. The camera head weighs 4.4 kg and the CCU 8.3 kg.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
