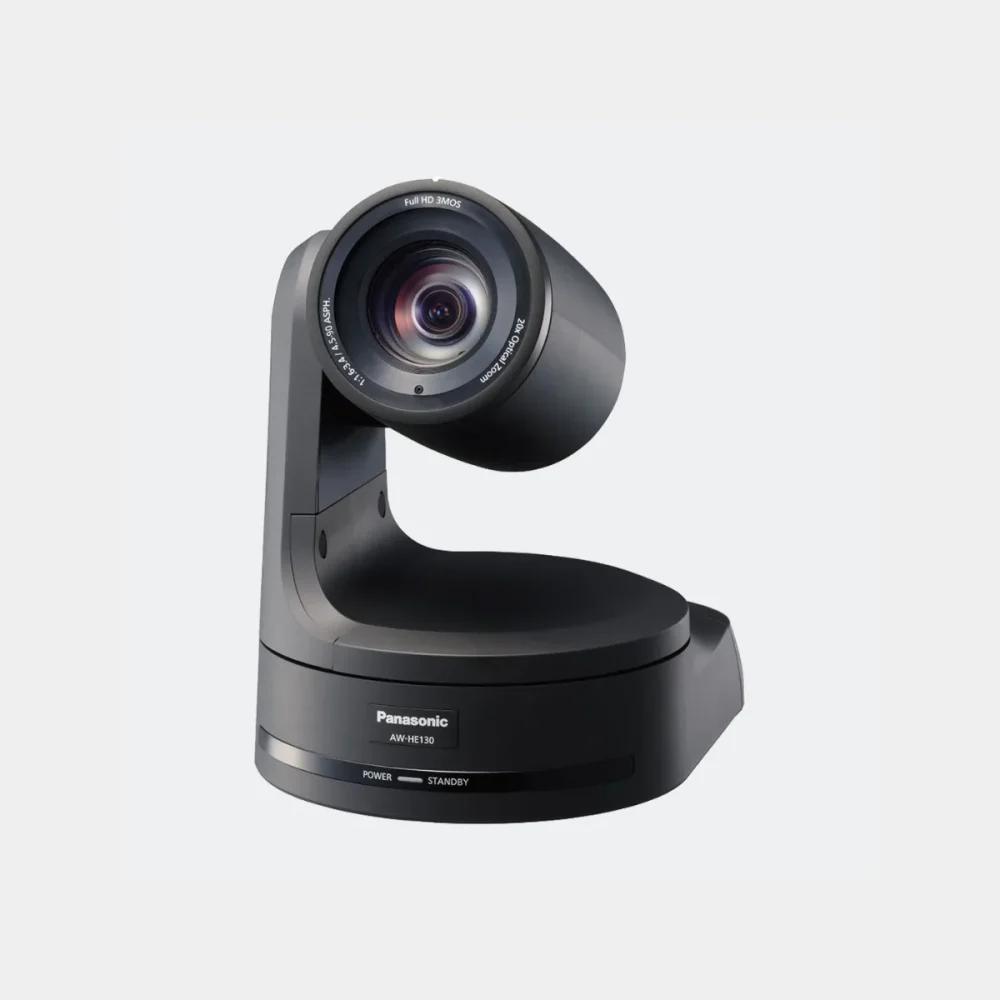

Panasonic AW-HE130 PTZ Camera
Specifications
- 3 x 1/2.86-type MOS sensors
- 20x optical zoom, F1.6, with 1.4x digital extender
- Pan ±175°, tilt -30° to 210°, up to 60°/s
The Panasonic AW-HE130 is an integrated pan/tilt/zoom camera built around three 1/2.86-type MOS sensors and an F1.6 20x optical zoom lens, with a 1.4x digital extender that adds 40 % to the effective focal length. It outputs over 3G-SDI, HDMI and IP at the same time, and can send up to four channels of H.264 streaming video. Pan covers ±175° and tilt covers -30° to 210°, at up to 60°/s. The camera is fan-less with an operating noise of NC35 or less, and PoE+ lets one LAN cable carry power, control and video.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
