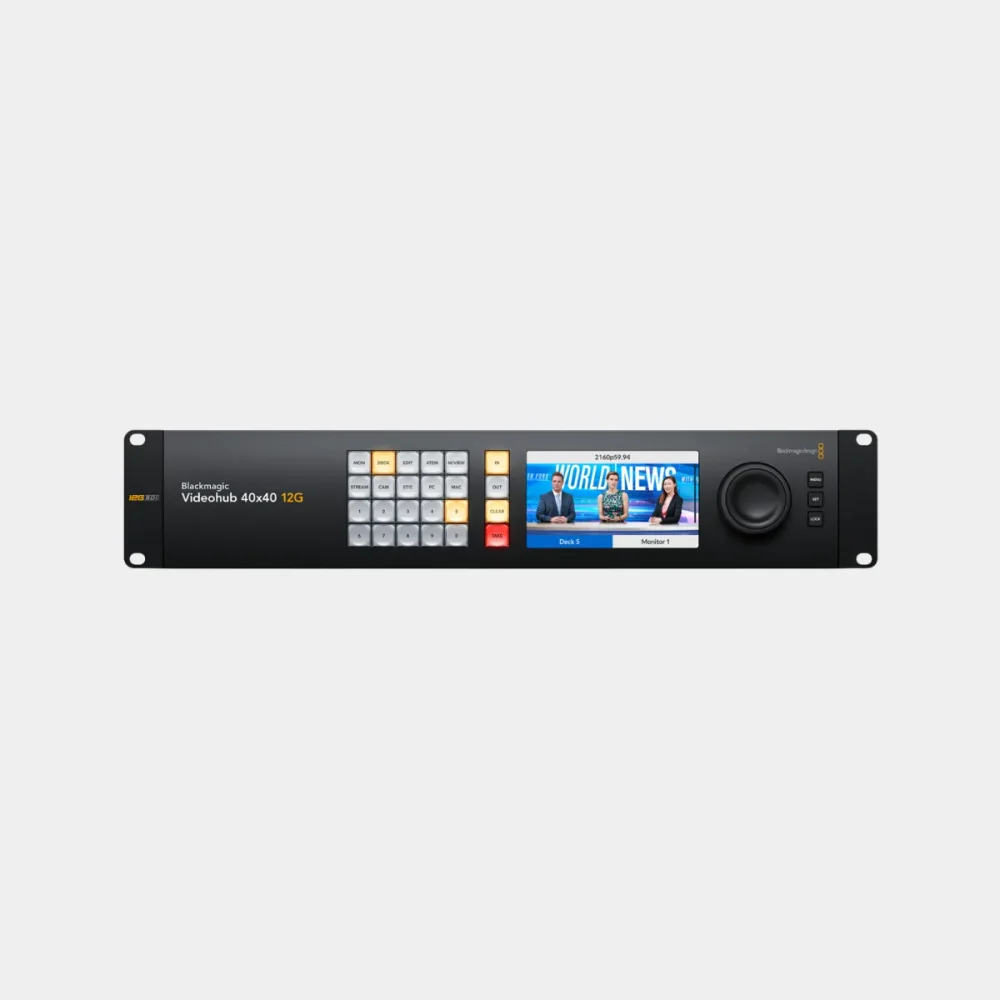

Blackmagic Videohub 40x40
Specifications
- 40 x 40 SDI crosspoint router, up to 12G-SDI
- SD, HD and Ultra HD up to 2160p60
- 2RU, dual redundant 100 - 240V AC, 5" LCD front panel
The Blackmagic Design Videohub 40x40 12G is a 2RU SDI router with 40 inputs and 40 outputs, for larger live event and broadcast signal management. It runs at up to 12G-SDI, covering DVB-ASI, 270 Mb, 1.5G, 3G, 6G and 12G rates and formats up to 2160p60. The front panel has 24 buttons, a 5 inch LCD and a spin knob with an electronic clutch, with Ethernet and USB-C for external control. Two redundant 100 - 240V AC supplies feed the unit, and routing is restored when power returns.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
More Video Equipment
Unilumin UPAD IV LED Video Wall (P1.9)
The Unilumin Upad IV 1.9 is an indoor rental LED video wall panel with a 1.9 mm pixel pitch and 256 x 256 pixels per cabinet, a density of 262,144 pixels per square metre. Each die-cast magnesium cabinet measures 500 x 500 x 70.1 mm and weighs 6.3 kg, with front and rear module access and a fast-lock design for one-person rigging. Angle blocks set curves from -5° convex to +10° concave, and the cabinets also build internal or external 90° corners, ceilings and cross shapes. The panel is rated IP30 for indoor use and carries a NovaStar A10S receiving card.
View details →
Unilumin UPAD IV2 USHIELD LED Video Wall (P2.6)
The Unilumin Upad IV2 U-shield is the 2.6 mm pixel pitch version of the Upad IV indoor rental LED wall, carrying 192 x 192 pixels per cabinet for a density of 147,456 pixels per square metre. Cabinets are die-cast magnesium, 500 x 500 x 70.1 mm and 6.3 kg each, with front and rear module access. The U-shield lamp package raises the viewing angle to 170° and the LED thrust rating to 13 kg (130 N), against 160° and 2.5 kg for the standard SMD1515 lamp, and covers 96% of DCI-P3. Cabinets curve from -5° convex to +10° concave and build internal or external 90° corners.
View details →
Unilumin P3.9 URM III Indoor/Outdoor LED
The Unilumin URM III P3.9 is a rental LED display panel with a 3.9 mm pixel pitch, built as a die-cast aluminium cabinet of 500 x 500 mm or 500 x 1000 mm and made in indoor and outdoor versions. The outdoor 500 x 500 mm panel carries 128 x 128 pixels for 65,536 pixels/m², is rated IP65 at 4,500 cd/m² and weighs 8.6 kg at 83 mm deep. Cabinets join with a click-lock catch for single-person installation, are serviced from the rear and curve from +10° to -10°. Refresh rate is 3,840 Hz with 14-bit processing, and a 500 x 500 mm panel draws 50 W typical and 170 W maximum.
View details →
