Blackmagic SDI to HDMI 6G Mini Converter
Specifications
- SDI input plus ALT redundant input, SDI loop output
- 1 x HDMI type A output, up to 2160p30
- Built-in 3D LUTs, 5.2 W, 12 - 18V DC

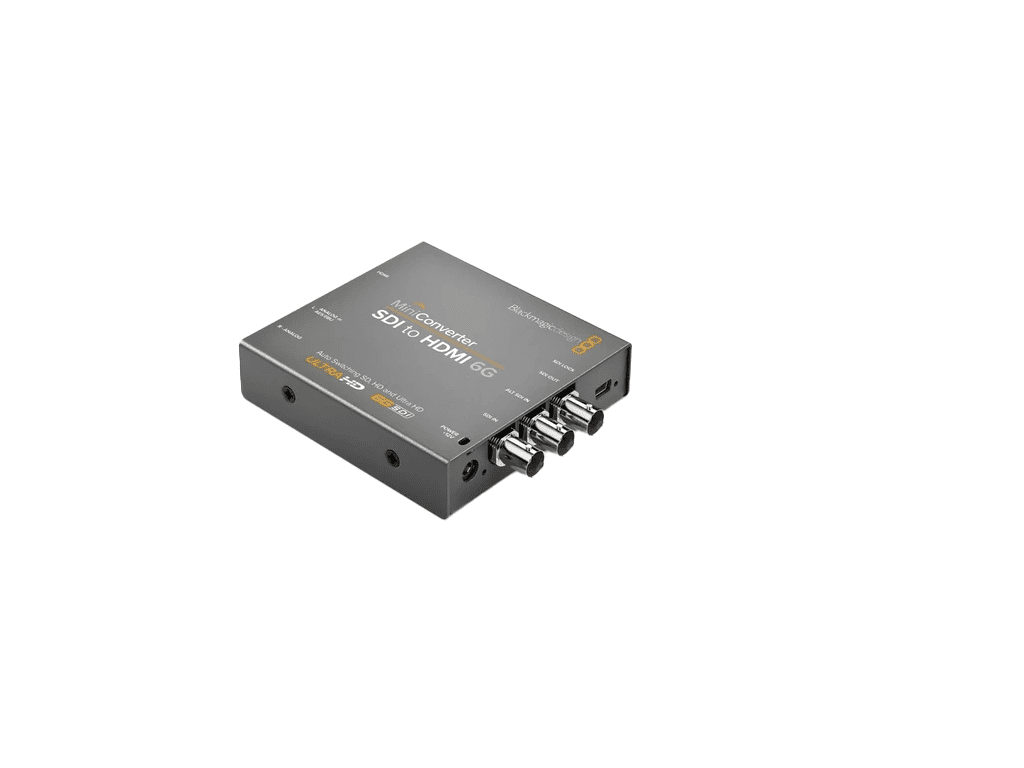

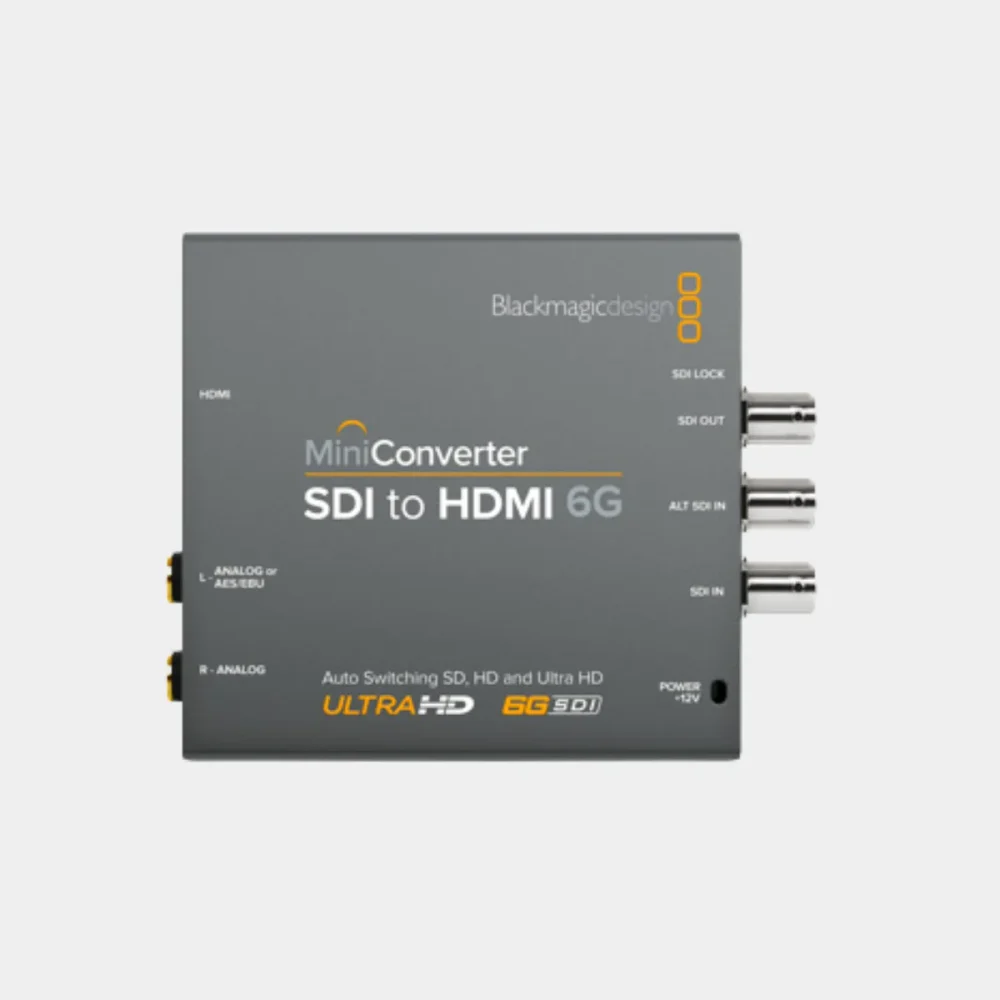

The Blackmagic Design Mini Converter SDI to HDMI 6G is a converter that takes a 6G-SDI feed to HDMI, with a main SDI input, a second ALT SDI input for redundancy and an SDI loop output alongside the HDMI type A output. It handles SD, HD and Ultra HD standards up to 2160p30, including 4K DCI. De-embedded audio is available on two channels of balanced analogue and two channels of AES/EBU. Built-in 3D LUTs can be applied to the output, and the converter draws 5.2 W from a 12 - 18V DC supply.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
