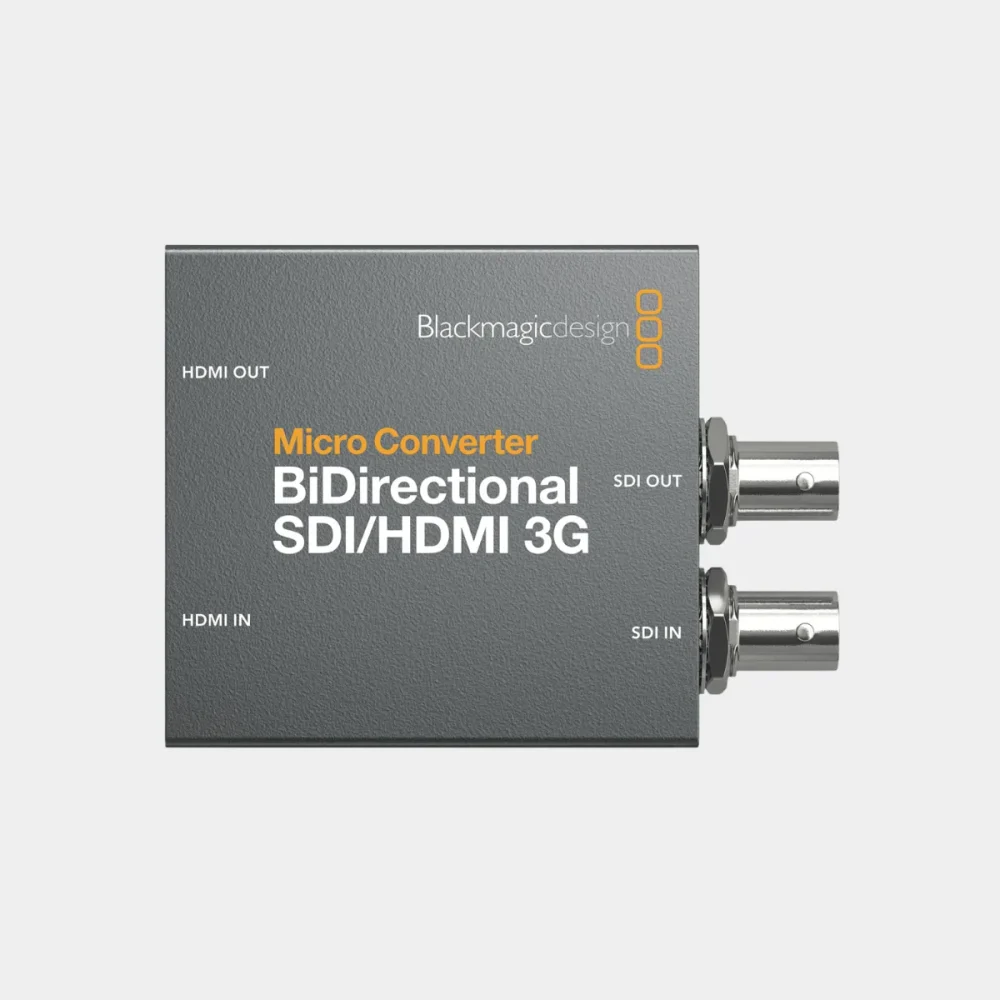

Blackmagic Micro Converter Bi-Directional 3G
Specifications
- 1 x SDI in and out, 1 x HDMI in and out, bi-directional
- SD and HD up to 1080p60; SDI 270 Mb, 1.5G, 3G
- USB-C powered, 2.5 W
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G is a two way converter that runs SDI to HDMI and HDMI to SDI at the same time. It has one SDI input, one SDI output, one HDMI input and one HDMI output, and handles SD and HD formats up to 1080p60 plus DCI 1080p24. SDI rates covered are 270 Mb, 1.5G and 3G. It is powered over USB-C and draws 2.5 W.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
