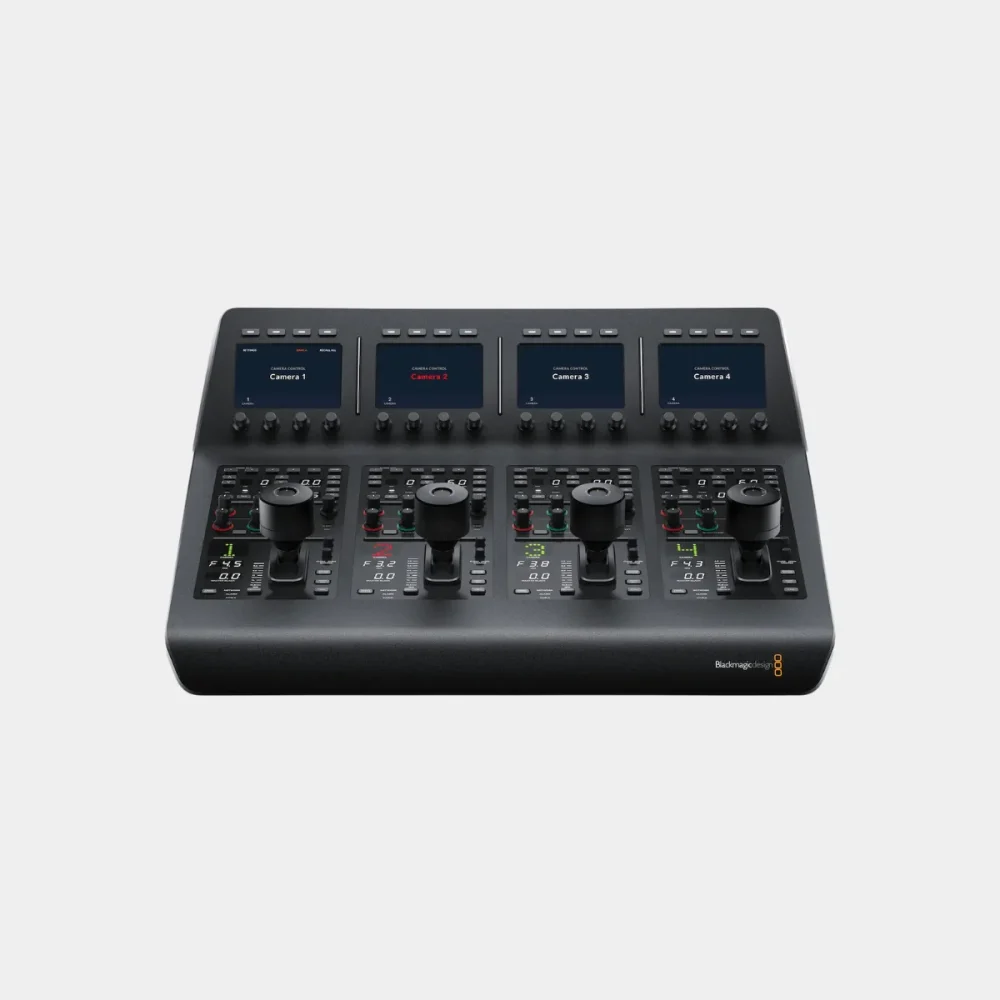

Blackmagic ATEM Camera Control Panel
Specifications
- Controls up to 4 cameras, 4 x 3 axis joysticks
- Iris, shutter, master gain, pedestal, RGB white/black balance
- 2 x 10/100/1000 BaseT Ethernet, 30 W, redundant power
The Blackmagic Design ATEM Camera Control Panel is a hardware CCU panel that shades and controls up to four cameras through an ATEM switcher. Each camera has its own three axis joystick, LCD menu display and preview button, with controls for iris, shutter speed, white balance, master gain, pedestal and RGB white and black balance. A per-camera indicator shows green off air and red on air. It connects over 2 x 10/100/1000 BaseT Ethernet with a loop output for additional panels, and takes internal 100 - 240V AC or 12 - 30V DC at 3 A with redundant power, drawing 30 W.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
