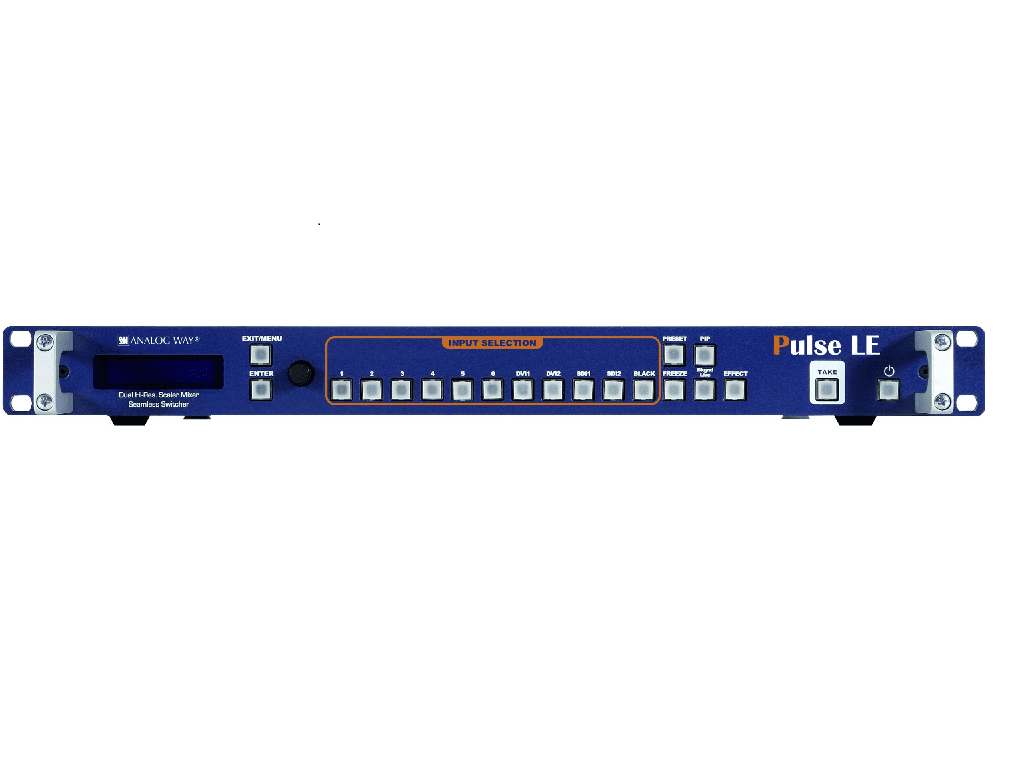

Analog Way Pulse LE PLS300 Switcher
Specifications
- 10 inputs ( 2 DVI Inputs, 6 Universal Analog Inputs, 2 x 3G/HD/SD-SDI , SDTV, EDTV, HDTV and Computer formats up to 2K)
- Outputs (2 Analog and Digital Outputs: Main & Preview, Computer Formats up to 2k, RGBHV, DVI and HDTV.
- Modes / effects (live bacKground and 1 live PIP: Fully resizable, 6 frames, 6 logo memories, PIP: Pan & Zoom resizing up to 1000%, PIP open/close animation, transitions: fade (dissolve), cut, clean cut, wipe, slide, PIP border (edge: 1 color, 1 width, 1 height), smooth move effect, Chroma/Luma key/DSK title)
The Analog Way Pulse (PLS300) is a dual scaler, hi-resolution mixer seamless switcher for large screen projections, conference rooms, and houses of worship. It offers seamless transitions between any source, 1 live PIP on a live background with numerous effects, and 10 inputs powered in a single rack unit, suited to live applications or high-end installations.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
