Yamaha Rio3224-D
Specifications
- 32 mic/line inputs, 16 analogue outputs, 8 AES/EBU output channels
- Dante primary/secondary; 44.1 / 48 / 88.2 / 96 kHz
- 480 x 232 x 362 mm, 12.4 kg

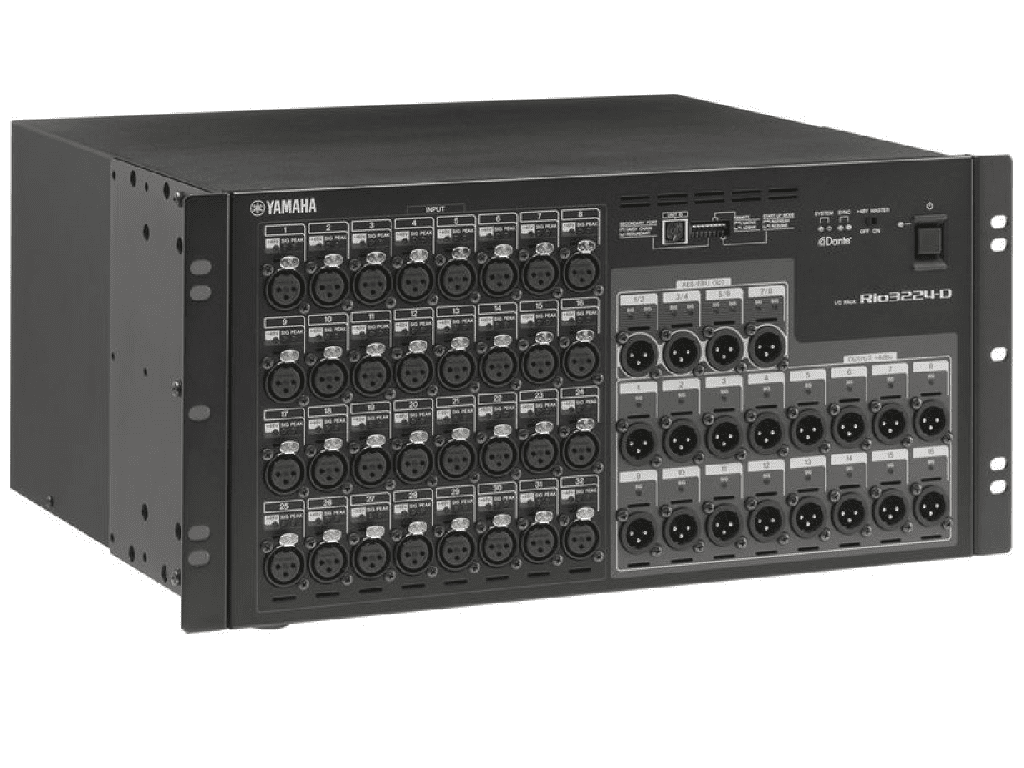

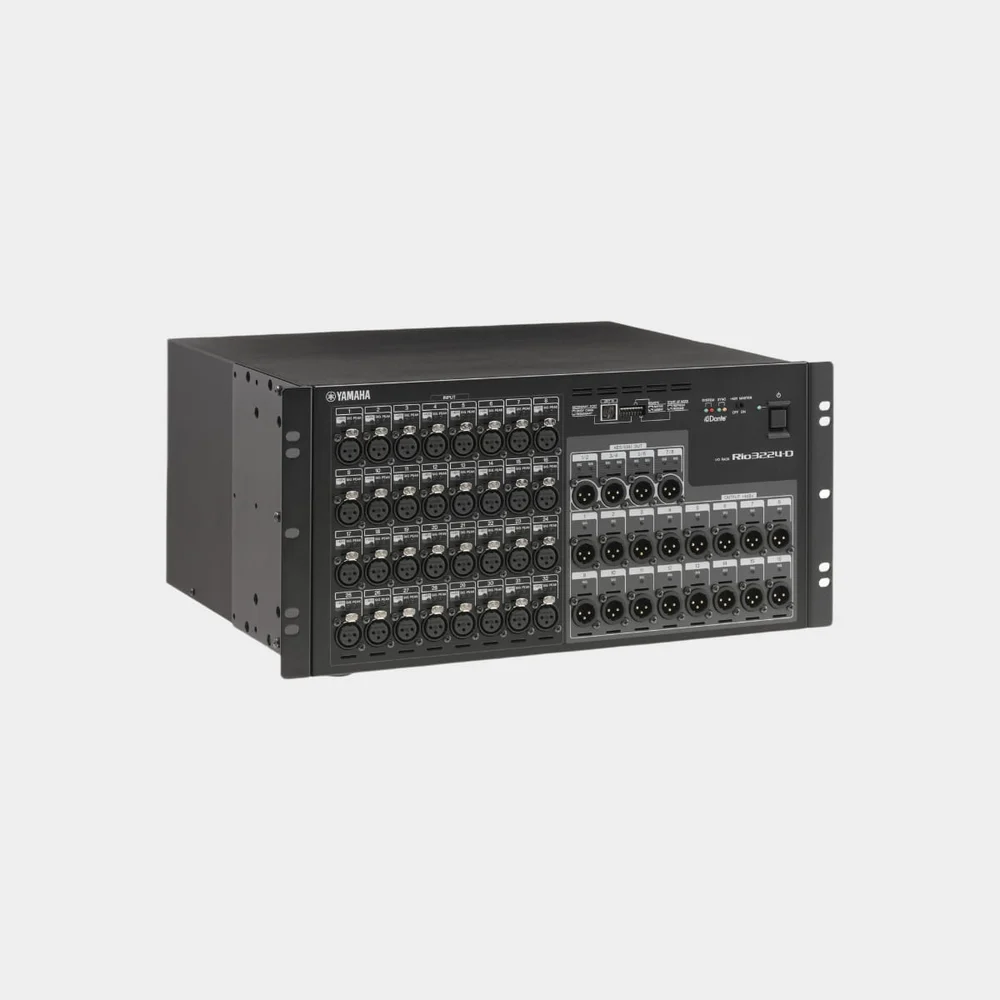

The Yamaha Rio3224-D is a Dante stage box with 32 remote-controlled mic/line inputs, 16 analogue outputs and 8 channels of AES/EBU output, in a rack chassis measuring 480 x 232 x 362 mm. Primary and secondary etherCON Cat5e ports carry 32 channels on to the network and 24 back from it, at sampling rates of 44.1, 48, 88.2 and 96 kHz. Yamaha quotes less than 3 ms input to output when connected to a CL5 over Dante with receive latency set to 0.25 ms at 48 kHz. The unit weighs 12.4 kg and draws 120 W.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
