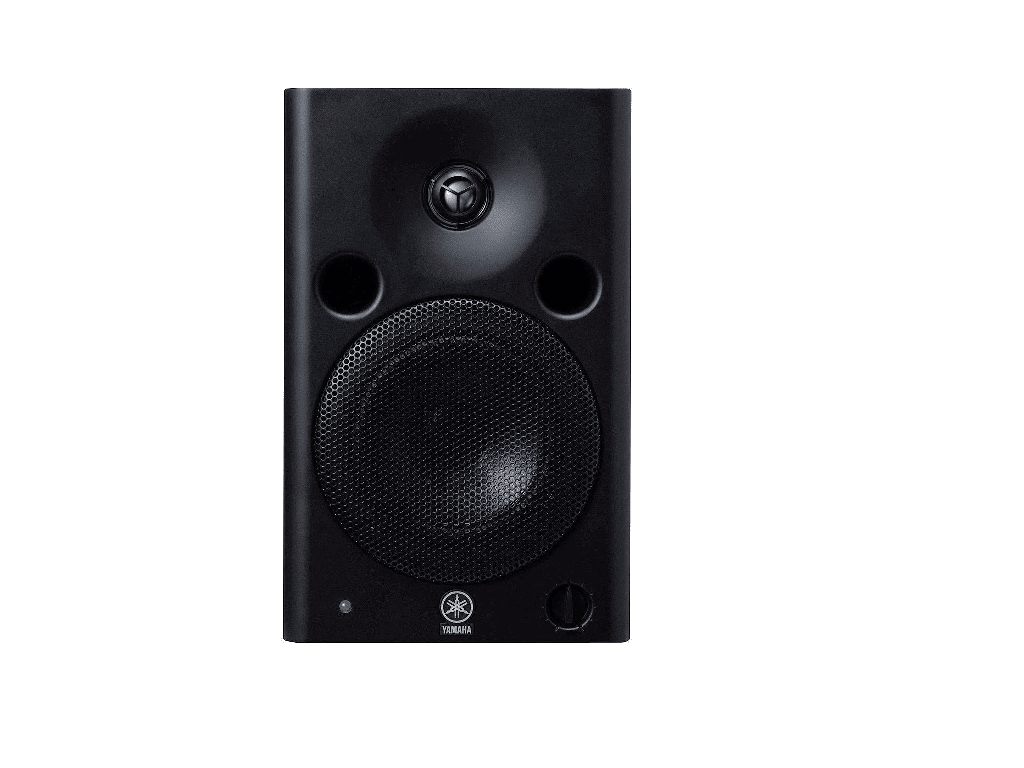

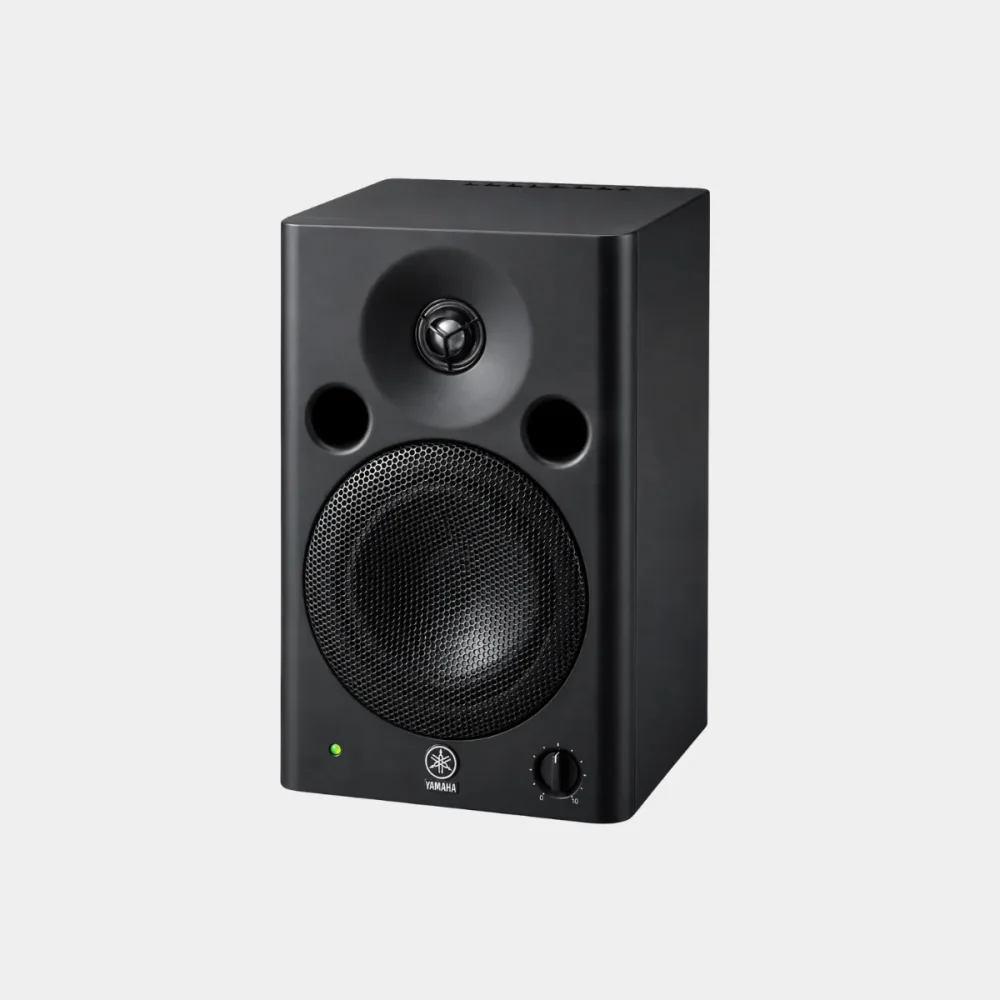

Yamaha MSP5 Studio Monitor
Specifications
- Components - 1 x 5" cone / 1 x 1" titanium dome, crossover 2.5 kHz
- Frequency range 50 Hz - 40 kHz (-10 dB)
- Amplification 40 W LF / 27 W HF; max output level 101 dB at 1 m
The Yamaha MSP5 STUDIO is a two-way bi-amplified powered monitor with a 5-inch cone woofer and a 1-inch titanium dome tweeter crossed over at 2.5 kHz. Internal amplification gives 40 W to the woofer and 27 W to the tweeter, for a maximum output level of 101 dB measured at 1 m on axis. Inputs are on XLR-3-31 and phone jack, and trim controls adjust high frequencies at 15 kHz by +1.5 or -1.5 dB and low frequencies at 60 Hz by +1.5, -1.5 or -3 dB. The cabinet measures 179 x 279 x 208 mm, weighs 7.9 kg and draws 60 W.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
