XTA DP226
Specifications
- 2 inputs / 6 outputs, 3-pin XLR, electronically balanced
- 46 parametric EQ bands (8 per input, 5 per output)
- Delay up to 650 ms per output; 1U, 44 x 482 x 300 mm, 3.5 kg

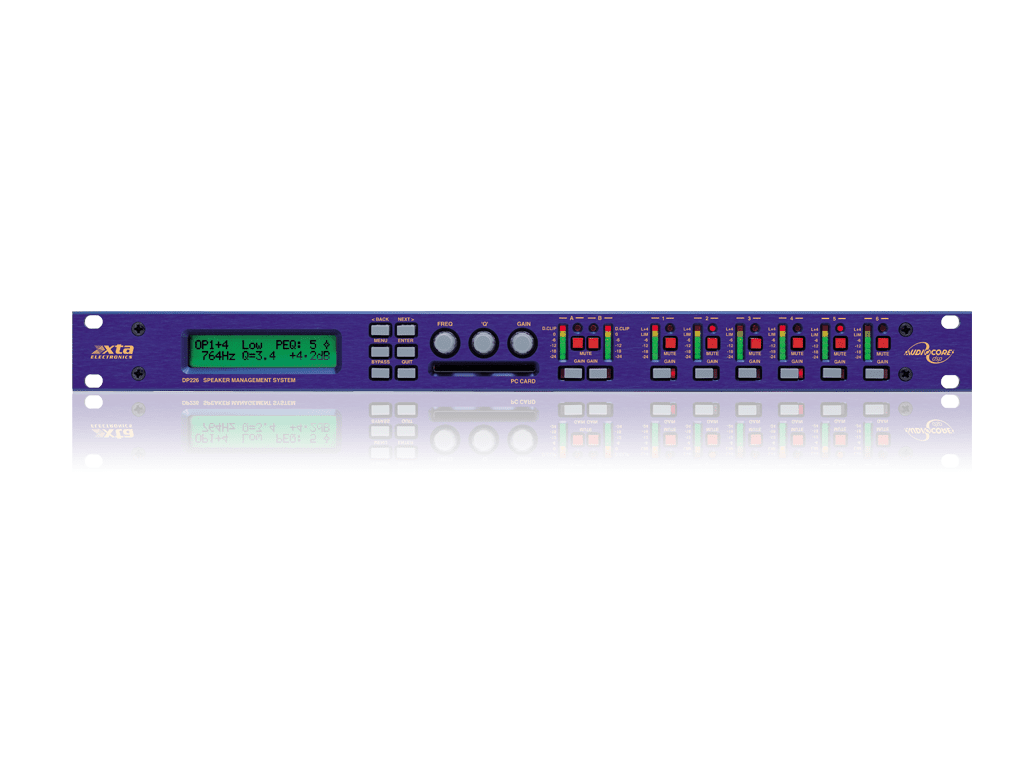

The XTA DP226 is a two-input, six-output digital loudspeaker management processor in a 1U chassis, used for crossover, equalisation, delay and limiting duties in sound reinforcement systems. It carries 46 parametric EQ bands, eight per input and five per output, adjustable from +15 dB to -30 dB between 20 Hz and 20 kHz. Each output also has high and low pass filters at 12, 18 or 24 dB per octave in Bessel, Butterworth or Linkwitz-Riley responses, polarity switching, delay up to 650 ms and a limiter. Connections are 3-pin XLR, with MIDI, RS232 and RS485 control from AudioCore.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
More Audio Equipment
L-Acoustics KARA II
The L-Acoustics KARA II is a two-way line source element with two 8" neodymium cone drivers and one 3" neodymium diaphragm compression driver. Panflex variable L-Fins set the horizontal directivity to 70 or 110° symmetric, or 90° asymmetric. The four-point captive rigging system allows inter-enclosure angles from 0 to 10°, and the enclosure weighs 26 kg and connects on two 4-point speakON sockets. It is driven by the LA4X, LA8 or LA12X amplified controller.
View details →
Yamaha DM7 Compact
The Yamaha DM7 Compact is a digital mixing console with 72 mono input channels, 48 mix buses, 12 matrices, two stereo buses and two cue buses. The surface has 12 channel faders plus four masters, 12.1-inch and 7-inch multi-touch displays, 16 analogue inputs, 16 analogue outputs, a two-channel AES/EBU output and one PY slot. Dante primary and secondary ports carry 144 input and 144 output channels, and Split Mode allows front of house and monitors to run from one surface. A dual power supply is built in, the Dan Dugan automixer covers 64 channels, and the RK1 kit rack-mounts it.
View details →
L-Acoustics KS28
The L-Acoustics KS28 is a subwoofer with two 18" neodymium cone drivers in a bass-reflex enclosure fitted with L-Vents laminar vents to reduce port turbulence. Its low frequency limit is 25 Hz at -10 dB, and it can be set for standard or cardioid directivity by combining the physical deployment with the matching preset. The cabinet is Baltic beech and birch plywood, rated IP55, measures 1340 x 550 x 719 mm and weighs 79 kg. Connection is on a single 4-point speakON socket and it is driven by the LA12X amplified controller.
View details →
