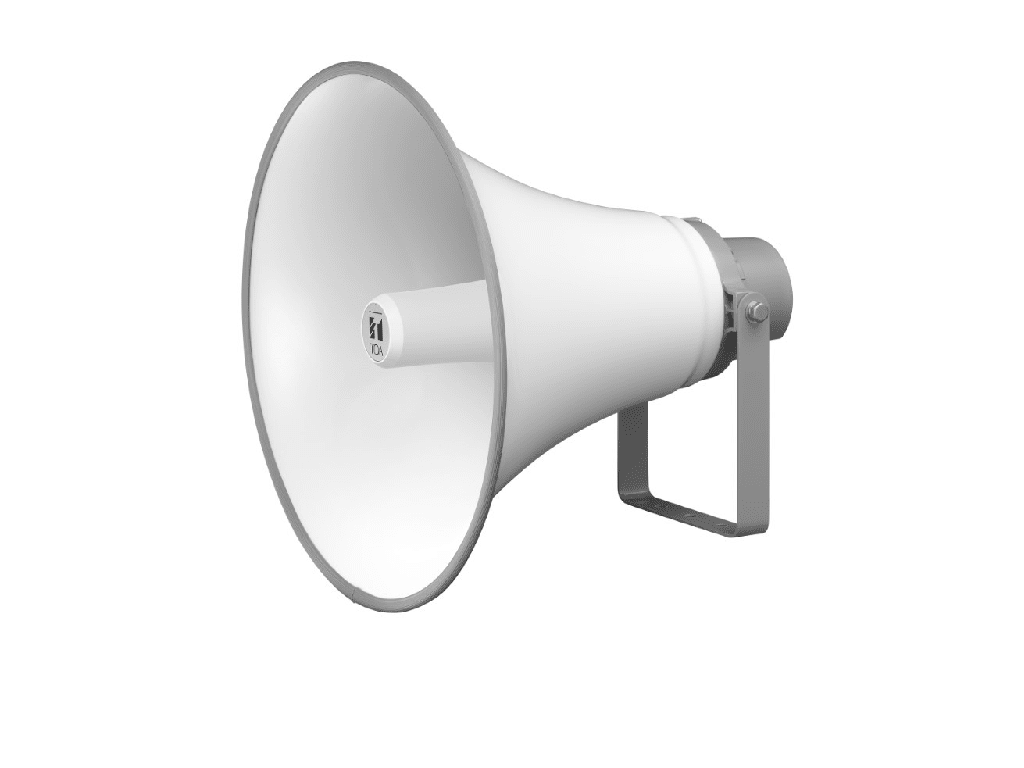

TOA TC-15ML
Specifications
- Rated input 15 W; taps 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
- Sensitivity 107 dB (1 W, 1 m), 300 Hz - 7 kHz
- 399 mm diameter x 342 mm deep, 2.7 kg, -20°C to +55°C
The TOA TC-15ML is a 15 W round horn loudspeaker with a matching transformer built in, used for paging and announcements indoors and outdoors. The transformer is tapped at 15 W (670 Ω), 10 W (1 kΩ) and 5 W (2 kΩ), each of which corresponds to a 100 V line, and the tap is chosen by turning the plug on the 40 cm tail to the marked position. The horn is powder-coated aluminium alloy, the driver case is ABS and the mounting bracket is powder-coated steel. It measures 399 mm across the mouth by 342 mm deep, weighs 2.7 kg and works from -20°C to +55°C.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
