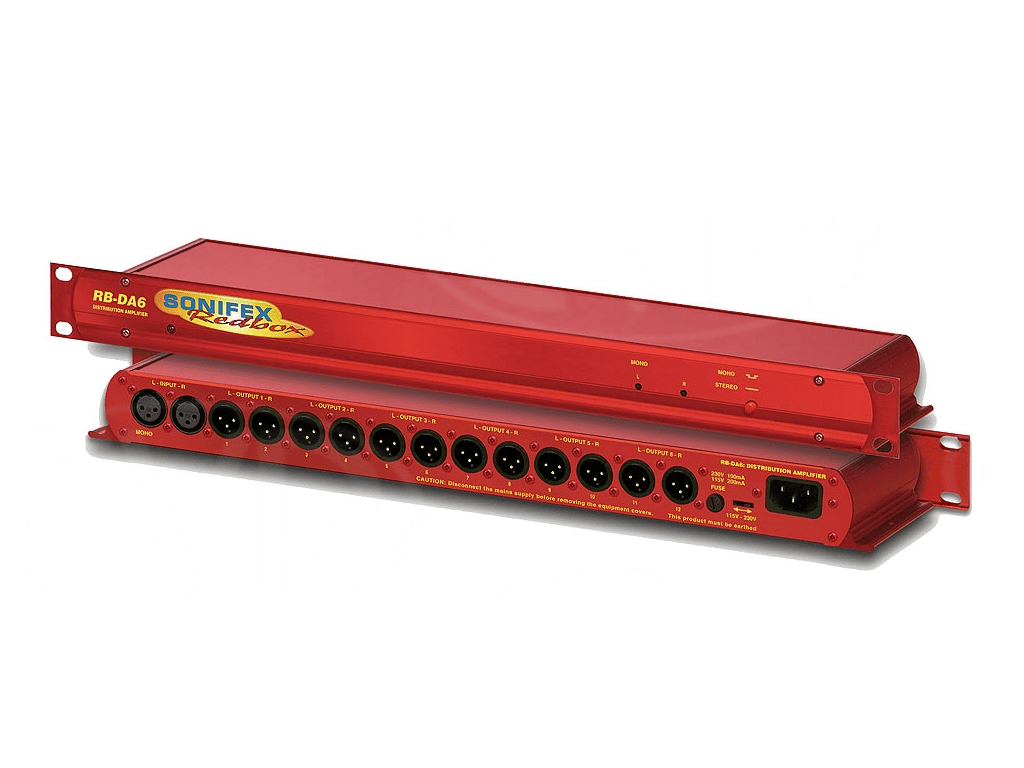

Sonifex RB-DA6 Red Box Distribution Amplifier - 2 in, 12 out
Specifications
- 2 x XLR inputs
- 12 x XLR outputs (6 stereo / 12 mono modes)
- 20 Hz - 20 kHz ±0.1 dB
The Sonifex RB-DA6 is a 1U 6-way stereo analogue distribution amplifier with two balanced XLR-3 inputs and twelve balanced XLR-3 outputs, for feeding one source to several destinations. It can be configured as 1 stereo input to 6 stereo outputs or 1 mono input to 12 mono outputs, and the inputs and outputs can be wired unbalanced. Left and right gain presets on the front panel adjust from 8 dB loss to 18 dB gain.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
