Slick Litebeam 3m
Specifications
- 3000 mm x 285 mm x 253 mm (LB3000)
- Weight 10.5 kg
- UDL 750 kg over 4 m span, 488 kg over 6 m

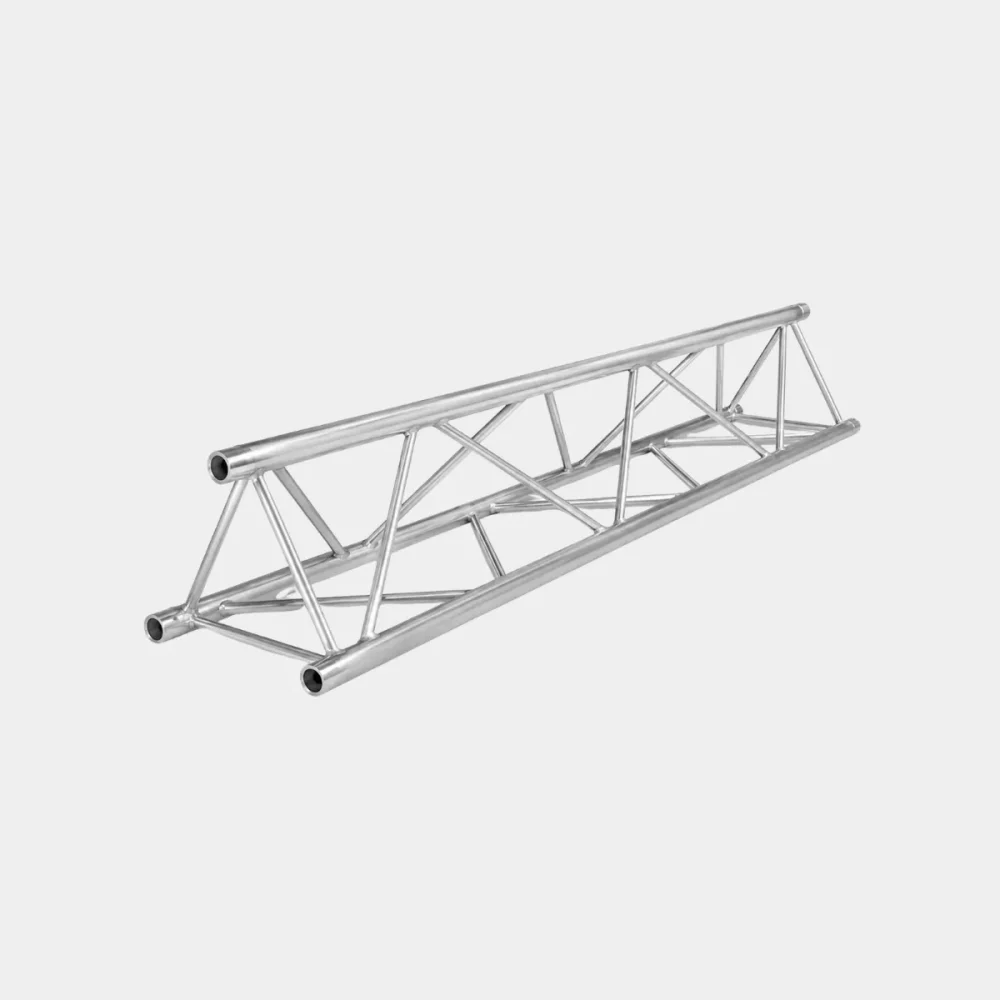

The Slick Litebeam 3 m (LB3000) is a 3 m section of Litebeam MK II triangular truss measuring 3000 mm x 285 mm x 253 mm and weighing 10.5 kg. It is made from EN AW-6082 T6 aluminium with 48 x 2 mm main chords and 19 x 1.6 mm braces, and sections join with Slick's conical taper fitting, secured by TRP pins and R1 clips. Slick's load table for the system gives a uniformly distributed load of 750 kg over a 4 m span and 488 kg over 6 m, with allowance made for the self-weight of the truss. The system is manufactured to BS EN 1090-3:2008 and is CE certified.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
