Slick Litebeam 0.25m
Specifications
- 250 mm x 285 mm x 253 mm (LB250)
- EN AW-6082 T6 aluminium, 48 x 2 mm main chords
- Conical taper joint with TRP pins and R1 clips

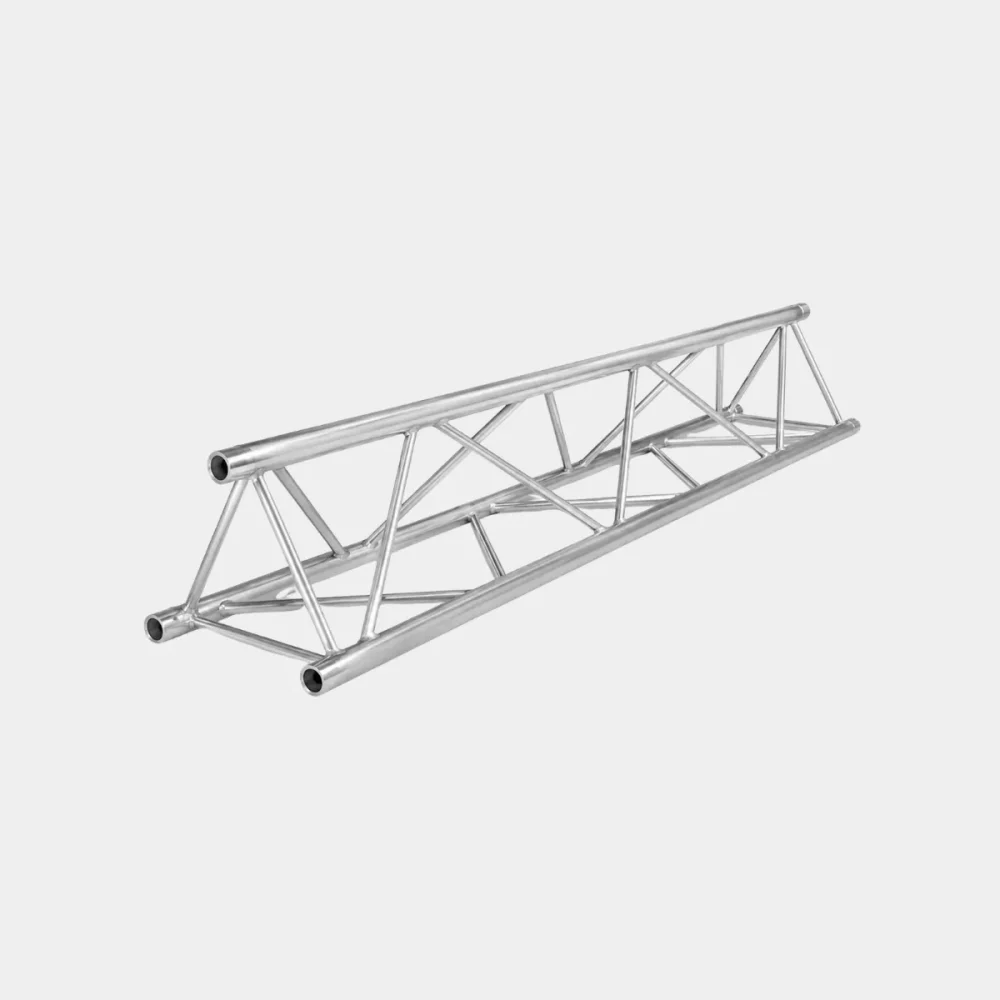

The Slick Litebeam 0.25 m (LB250) is a 0.25 m section of Litebeam MK II triangular truss measuring 250 mm x 285 mm x 253 mm. It is made from EN AW-6082 T6 aluminium with 48 x 2 mm main chords and 19 x 1.6 mm braces, and sections join with Slick's conical taper fitting, secured by TRP pins and R1 clips. A short section like this one is used to make up an exact overall length in an exhibition stand, presentation set or small lighting rig. The system is manufactured to BS EN 1090-3:2008 and is CE certified.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
