Roundsling
Specifications
- Working load limits 1,000 kg, 2,000 kg and 3,200 kg
- Lengths 2 m, 3 m, 4 m and 6 m
- Endless polyester core in a woven sleeve, no hard fittings

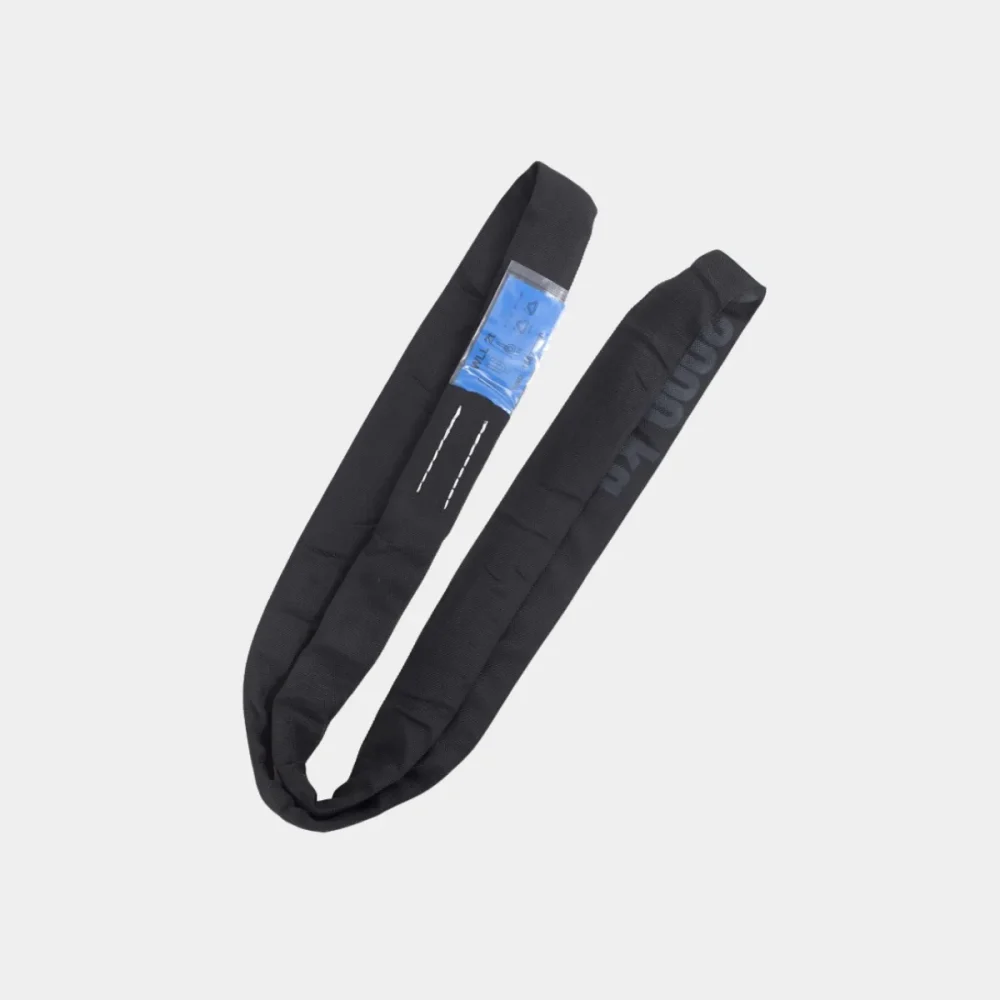

The Roundsling is an endless lifting sling made from a polyester yarn core inside a woven protective sleeve, used to attach loads to rigging points and to form bridles around truss and structural steel. Having no hard fittings, it lies flat against the load and can be used straight, choked or in a basket hitch. Cloud One's stock record lists round slings at working load limits of 1,000 kg, 2,000 kg and 3,200 kg in 2 m, 3 m, 4 m and 6 m lengths, colour coded purple at 1,000 kg and green at 2,000 kg, with black-sleeved slings also held for use in view of an audience.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
