PA Tower - 6.8 metres
Specifications
- Maximum trim height 6.8 m
- Alustage Quadro 390 truss mast on a PDS 05.01 HD tower base
- Hand winch; ballasted with 600 litre water tanks on ballast frames

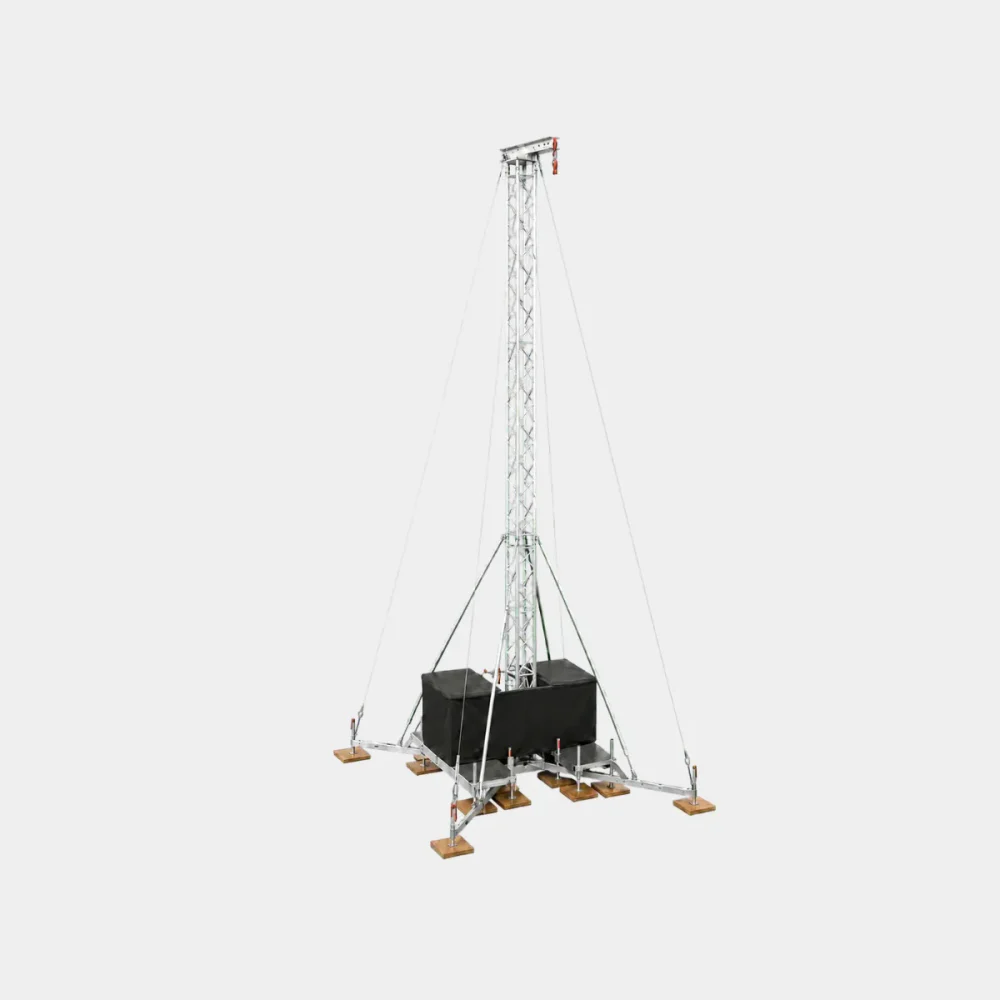

The Alustage PA Tower - 6.8 m is a wind-up lifting tower used to raise loudspeaker systems above an audience. Cloud One's stock record builds it from the same Alustage parts as the 9.8 m tower on a shorter mast: Quadro 390 truss on a PDS 05.01 steel tower base, an NDS 390.06.00 header block at the top, a hand-cranked PDS 12.00 winch assembly, and 2.6 m PDS 11.00 legs braced by RP-Fi50 diagonals. Outdoors it is ballasted with 600 litre water tanks on ballast frames. The 6.8 m in the name is the maximum trim height, not the height of the tower.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
