Meyer UPA-1P
Specifications
- Components - 1 x 12" cone / 1 x 3" compression driver
- Frequency response 80 Hz - 17 kHz (± 4 dB)
- Coverage 100° x 40° constant-Q horn

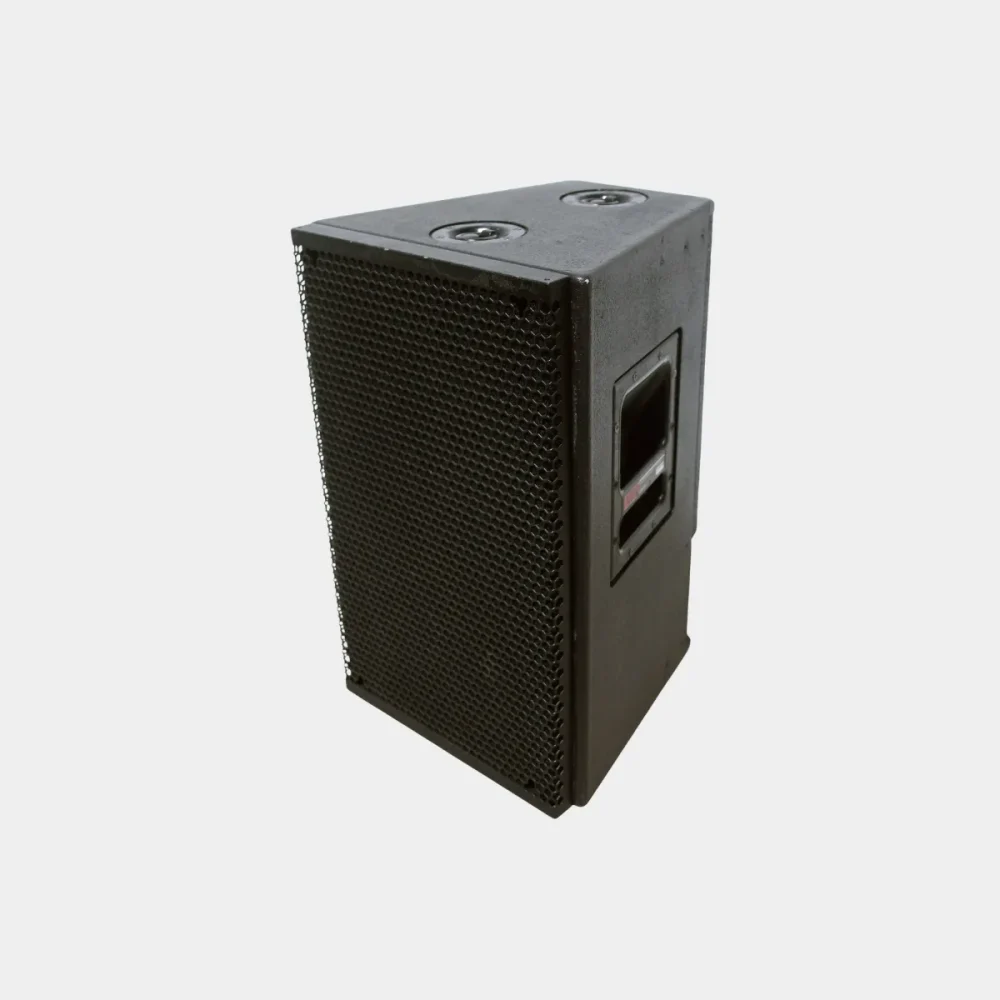

The Meyer Sound UPA-1P is a self-powered two-way loudspeaker with a 12" cone low frequency driver and a 3" diaphragm compression driver on a 100 by 40° constant-Q horn. A two-channel class AB/bridged amplifier gives 1000 W peak total output, and the internal electronics handle crossover, equalisation and driver protection. Audio arrives on a 3-pin XLR input with a male loop output, and mains on a powerCON 20 inlet. The cabinet has four ring and stud pan fittings each rated at 190.51 kg.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
