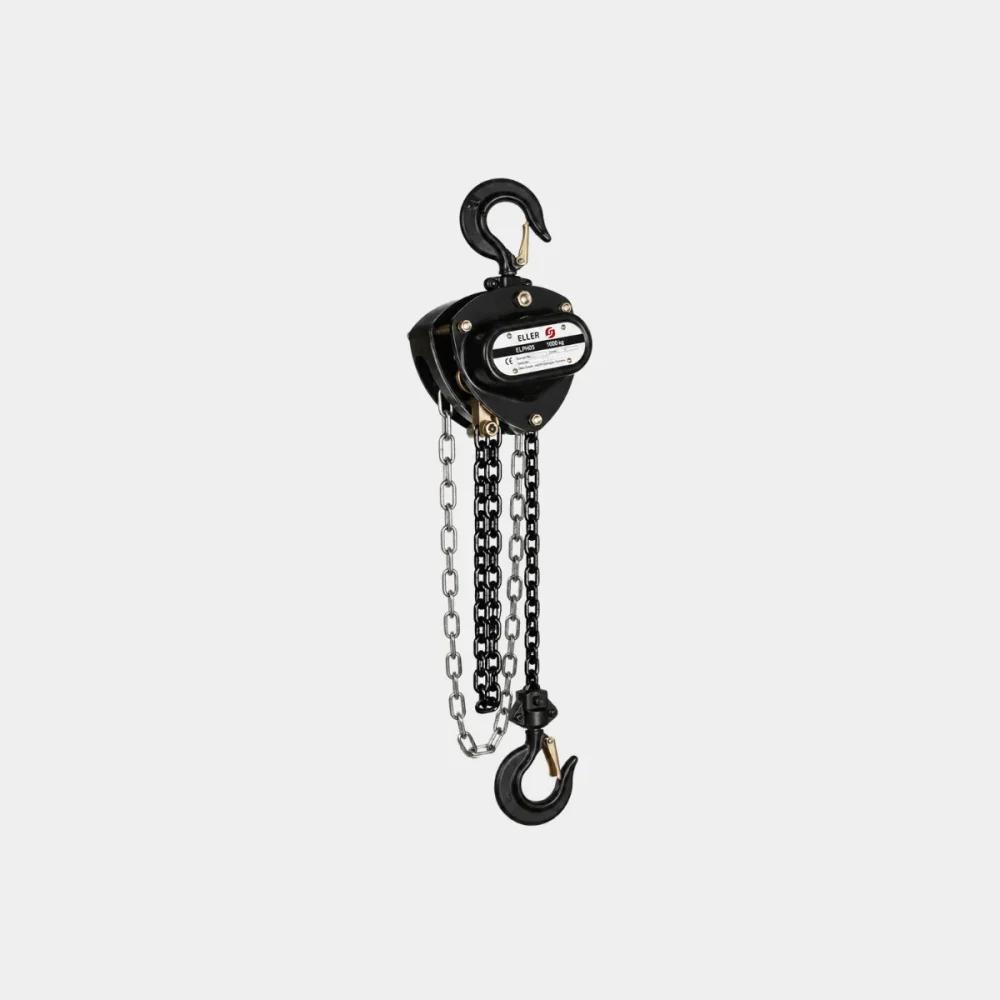

Manual Chain Hoist 0.5T
Specifications
- Rated capacity 500 kg (0.5 t)
- Lift height - 6 m on the ACE SFCB0.56, 5 m on the Felco
- Hand-chain operated, with load brake
The Manual Chain Hoist 0.5T is a hand-operated chain block with a rated capacity of 500 kg. Pulling the hand chain turns a geared mechanism that raises or lowers the load chain, and a load brake holds the load in position when the hand chain is released. Cloud One's stock record covers two 500 kg blocks: an ACE SFCB0.56 with a 6 m lift, and a Felco with a 5 m lift, each with its own chain bag. It hangs from a top hook onto a beam clamp, trolley or rigging point, and is used where a load has to be lifted or trimmed without a power supply.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
