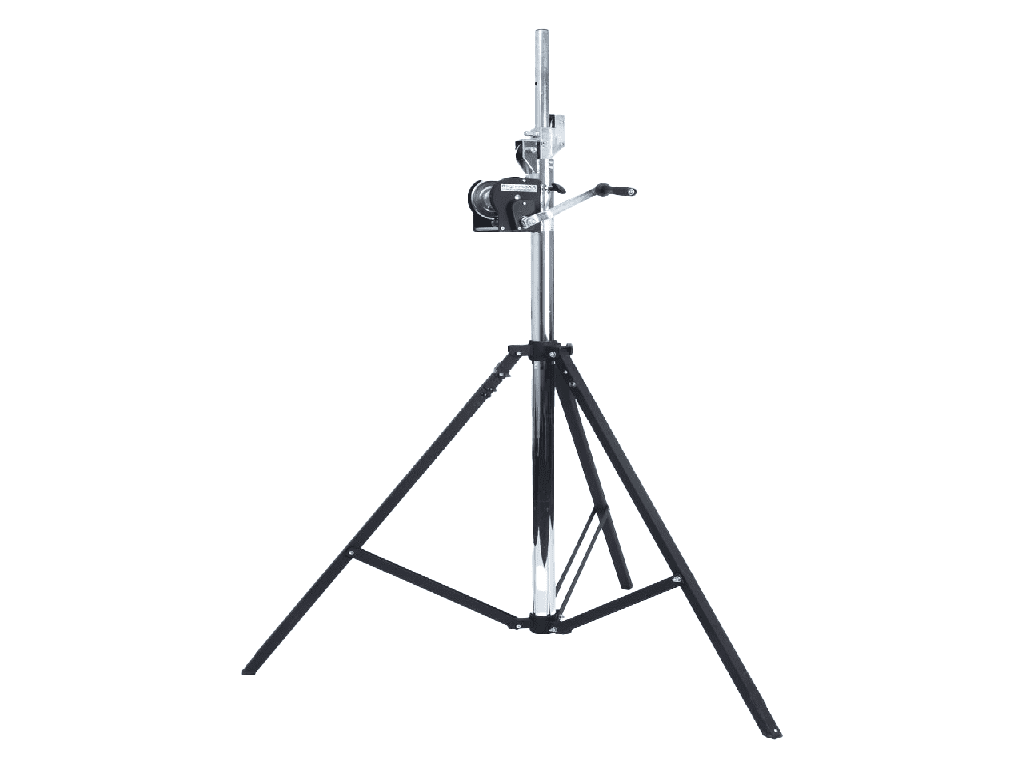

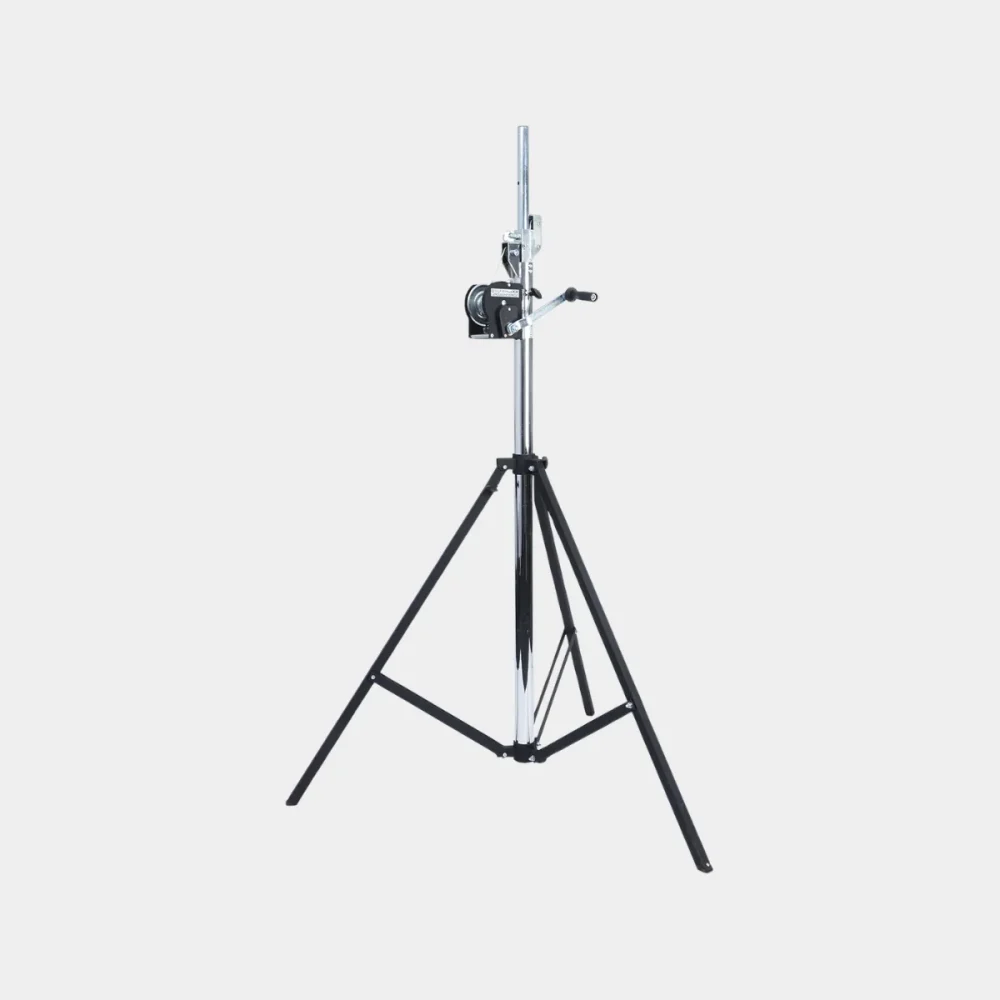

LightmaXX LS-4000 Pro Wind-Up Stand
Specifications
- Height 1.75 m - 4 m (1750 - 4000 mm)
- Maximum load 85 kg; TV spigot adapter
- Base 1.60 m across; 25 kg; steel
The lightmaXX LS-4000 PRO is a steel wind-up lighting stand that raises its load on a hand crank rather than by lifting the mast sections by hand. It adjusts from 1.75 m to 4 m over two telescopic masts, each held at height by a pin through the mast and a clamping screw, and takes a maximum load of 85 kg on a TV spigot adapter. The base opens to 1.60 m across and the stand weighs 25 kg. It is built for indoor use at IP20, so it is not for work in rain or standing damp.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
More Rigging Equipment
LITEC Flyintower Compact 6m
The LITEC Flyintower Compact is a ground-support lifting tower for loudspeaker systems, built on QX30SA 300 truss and raised with a manual hoist. Compact is LITEC's own name for the Flyintower 6-300. It reaches a maximum tower height of 6 m, lifts up to 300 kg and weighs 70 kg. Dismantled it packs into 0.4 m³, small enough for a single flightcase holding every part except the vertical trusses. LITEC limit the wind-exposed surface of the suspended load to 2.5 m², with ballast set according to wind speed.
View details →
PA Tower - 9.8m
The Alustage PA Tower is a wind-up lifting tower used to raise loudspeaker systems, including line arrays, above an audience. Cloud One's stock record identifies it as an Alustage tower: a mast of Quadro 390 truss on a PDS 05.01 HD tower base, with an NDS 390.06.00 header block at the top and a hand-cranked PDS 12.00 winch assembly, braced by 2.6 m legs and RP-Fi50 diagonal braces. Each leg frame is ballasted with a 600 litre water tank. The 9.8 m in the name is the maximum trim height, the height the load is hoisted to, not the height of the tower.
View details →
CM Lodestar 1T Motor
The Columbus McKinnon CM Lodestar is an electric chain hoist (chain motor) for entertainment rigging, and this unit is the 1000 kg capacity version. Columbus McKinnon lists two 1000 kg models: Model L lifting at 4 m/min with a 1 HP motor, and Model LL at 8 m/min with a 2 HP motor, both running on 400 V three-phase 50 Hz at a 40% duty cycle (FEM class 2M). The hoist runs on 7.9 x 21.7 mm zinc-plated load chain (1.65 kg per metre, 8:1 safety factor) through a five-pocket liftwheel, has a DC brake and an adjustable clutch, is rated IP65, and complies with BGV-D8, BGV-D8+ and igvw SQ P2.
View details →
