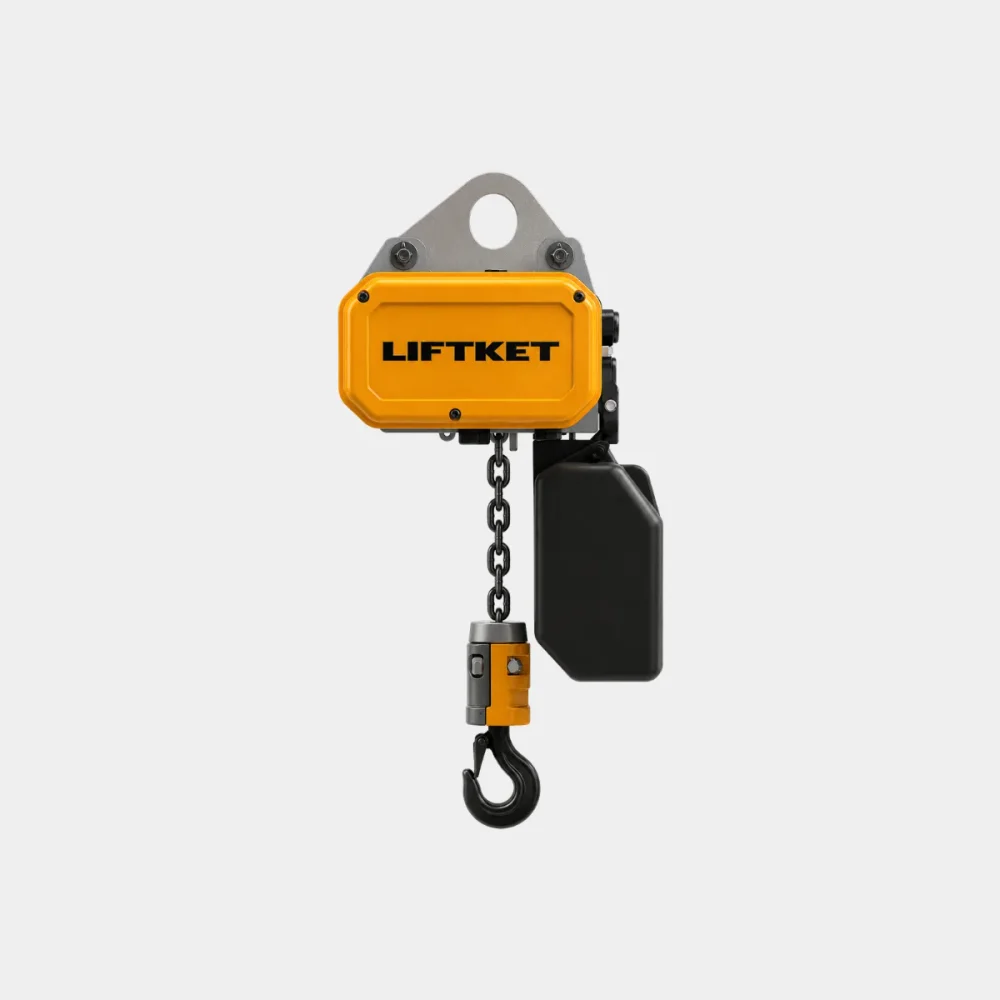

LIFTKET Electric Chain Hoist 1T (20m)
Specifications
- Rated capacity 1,000 kg (1 t)
- 20 m load chain, DAT chain to DIN EN 818-7
- Direct control, IP54, 5 m/min; run from a separate controller
The LIFTKET Electric Chain Hoist 1T is an electric chain hoist with a 1,000 kg capacity and 20 m of load chain, used to fly truss and loudspeaker hangs. Cloud One's stock record lists it with direct control, an IP54 rating, a 5 m/min lifting speed, a single-hole eye suspension, double braking and clearance for inverted use. LIFTKET's stage range runs a galvanised or black phosphated DAT load chain to DIN EN 818-7, and an electromagnetic brake with an optional additional safety brake. It is operated from a separate chain hoist controller.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
