Lab Gruppen PLM 12k44 SP
Specifications
- Power output - 4 x 1900 W @ 8 Ω / 4 x 3000 W @ 4 Ω
- 4 analogue + 4 AES/EBU inputs, 8 x 8 dual-redundant Dante
- Outputs - 1 x NLT8 and 2 x NLT4 speakON

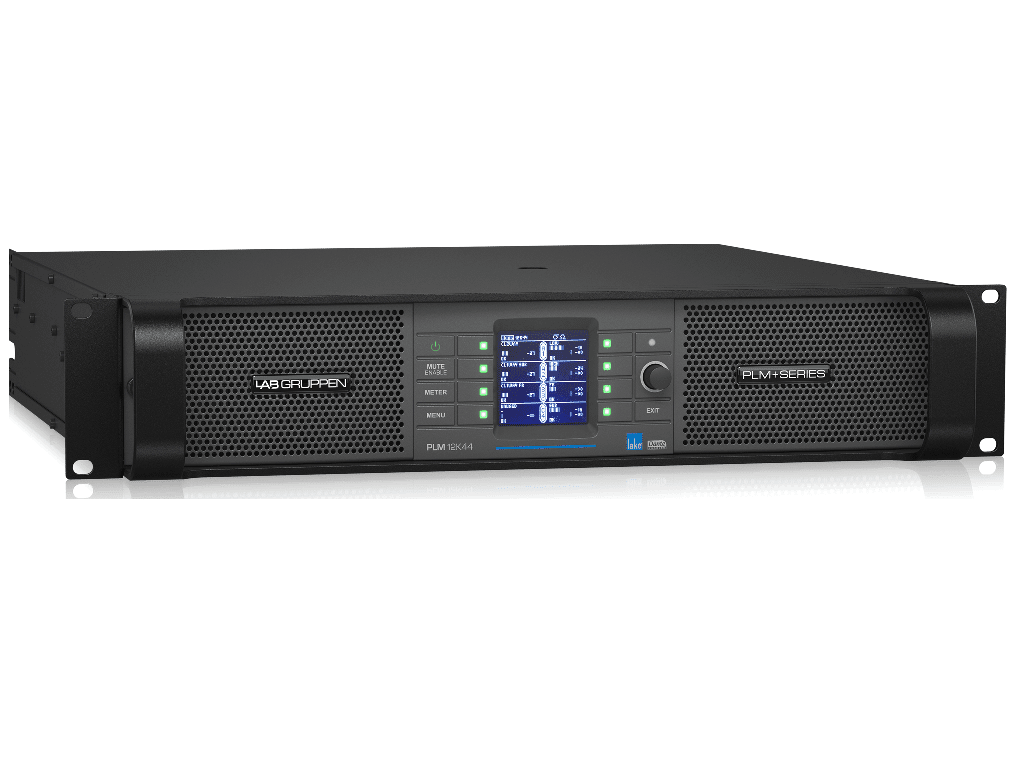

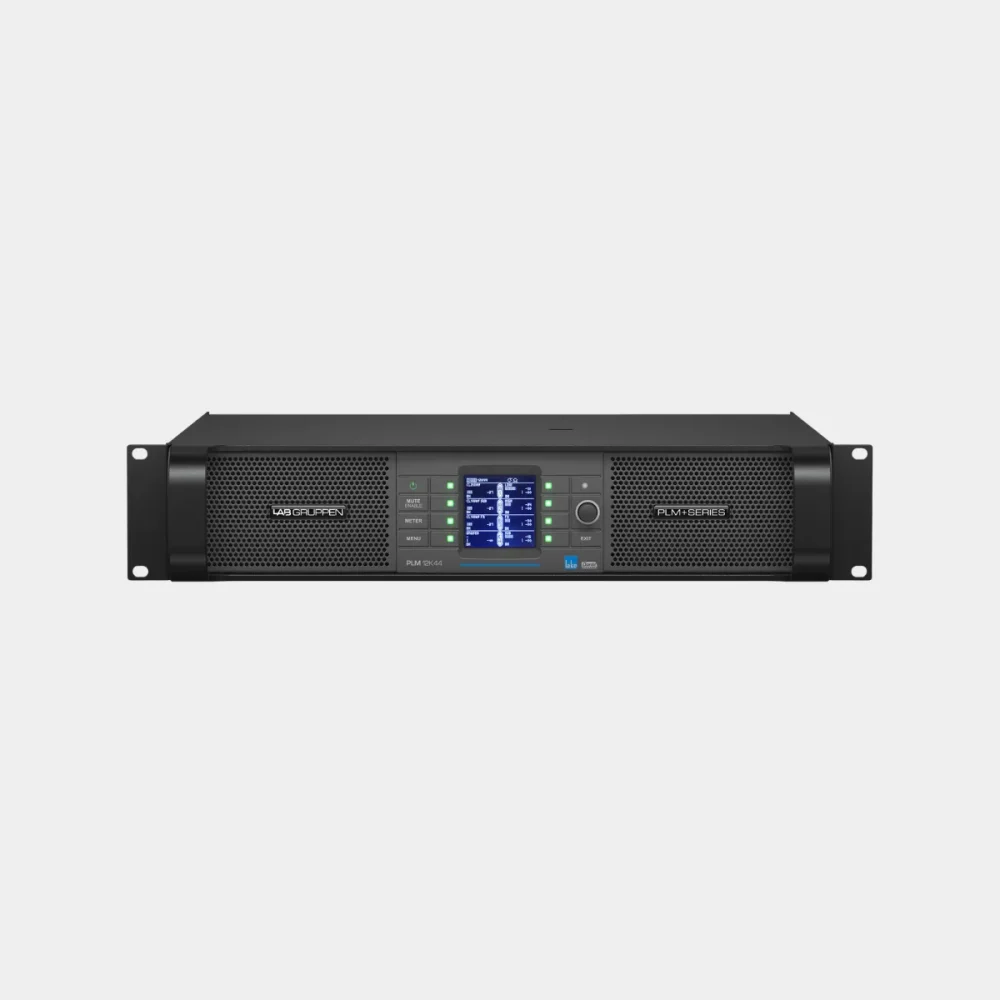

The Lab Gruppen PLM 12K44 SP is a 12,000 W amplifier with four output channels, Lake digital signal processing and Dante networking. It produces 4 x 1900 W into 8 ohms and 4 x 3000 W into 4, 2.67 or 2 ohms, and Rational Power Management allocates the available power across the four channels to suit the load. Inputs are four analogue channels with Iso-Float ground isolation, four AES/EBU channels and 8 x 8 channels of dual-redundant Dante with AES67. Outputs are on one NLT8 and two NLT4 twist-lock connectors.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
