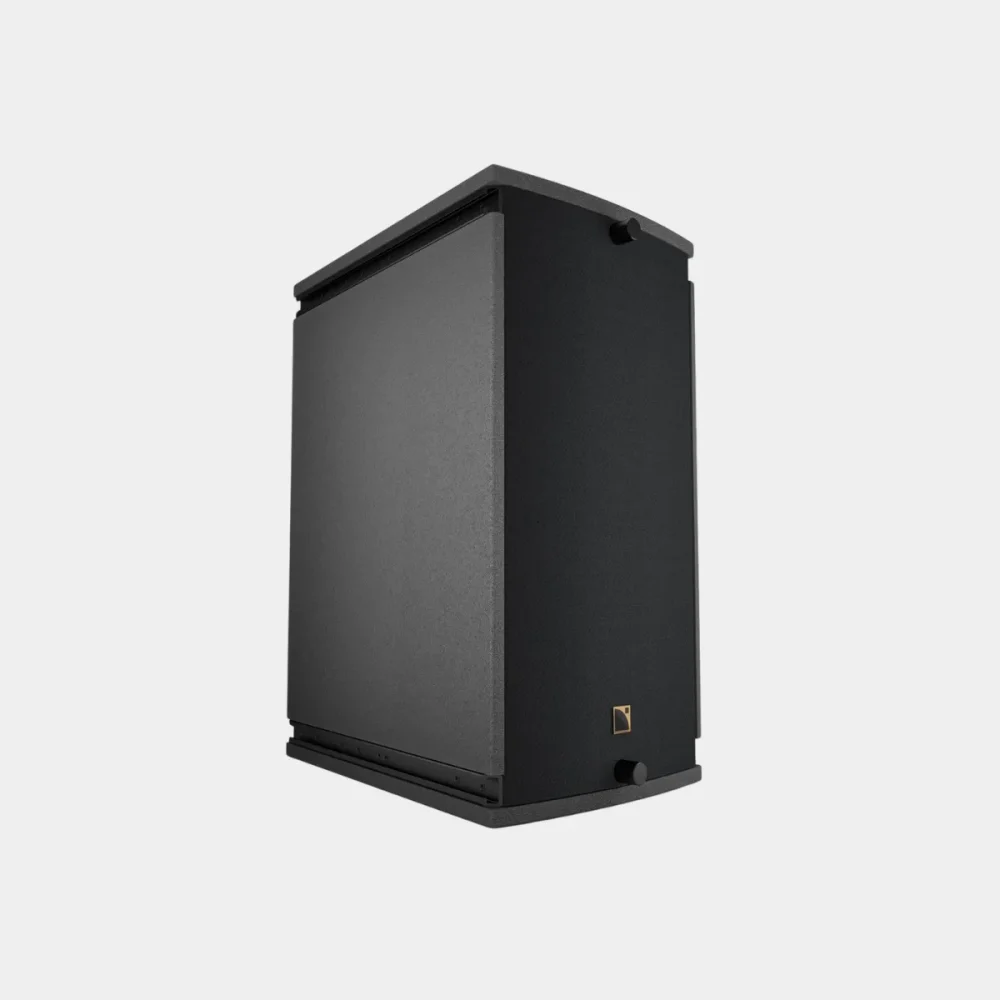

L-Acoustics ARCS II
Specifications
- Components - 1 x 15" / 1 x 3" neodymium drivers
- Frequency response 50 Hz - 20 kHz (-10 dB)
- Max SPL 140 dB
The L-Acoustics ARCS II is a two-way active constant-curvature line source enclosure, driven by the LA4X or LA8 amplified controller, that is arrayed horizontally or vertically with a coverage angle of 22.5° per enclosure (N x 22.5°) and an asymmetrical 60° (20°/40°) pattern in the other plane. It combines a 15" neodymium low-frequency driver with a 3" diaphragm neodymium compression driver on a DOSC waveguide. Connection is by 4-point SpeakON in and link sockets, and the enclosure can be paired with SB28 subwoofers, which extend the system bandwidth down to 25 Hz.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
More Audio Equipment
L-Acoustics KARA II
The L-Acoustics KARA II is a two-way line source element with two 8" neodymium cone drivers and one 3" neodymium diaphragm compression driver. Panflex variable L-Fins set the horizontal directivity to 70 or 110° symmetric, or 90° asymmetric. The four-point captive rigging system allows inter-enclosure angles from 0 to 10°, and the enclosure weighs 26 kg and connects on two 4-point speakON sockets. It is driven by the LA4X, LA8 or LA12X amplified controller.
View details →
Yamaha DM7 Compact
The Yamaha DM7 Compact is a digital mixing console with 72 mono input channels, 48 mix buses, 12 matrices, two stereo buses and two cue buses. The surface has 12 channel faders plus four masters, 12.1-inch and 7-inch multi-touch displays, 16 analogue inputs, 16 analogue outputs, a two-channel AES/EBU output and one PY slot. Dante primary and secondary ports carry 144 input and 144 output channels, and Split Mode allows front of house and monitors to run from one surface. A dual power supply is built in, the Dan Dugan automixer covers 64 channels, and the RK1 kit rack-mounts it.
View details →
L-Acoustics KS28
The L-Acoustics KS28 is a subwoofer with two 18" neodymium cone drivers in a bass-reflex enclosure fitted with L-Vents laminar vents to reduce port turbulence. Its low frequency limit is 25 Hz at -10 dB, and it can be set for standard or cardioid directivity by combining the physical deployment with the matching preset. The cabinet is Baltic beech and birch plywood, rated IP55, measures 1340 x 550 x 719 mm and weighs 79 kg. Connection is on a single 4-point speakON socket and it is driven by the LA12X amplified controller.
View details →
