EAW SB1000
Specifications
- Components - 2 x 18" drivers, vented Baltic birch enclosure
- Frequency response 30 Hz - 100 Hz (± 3 dB)
- 2,000 W AES, 4 Ω or 2 x 8 Ω, 138 dB calculated peak

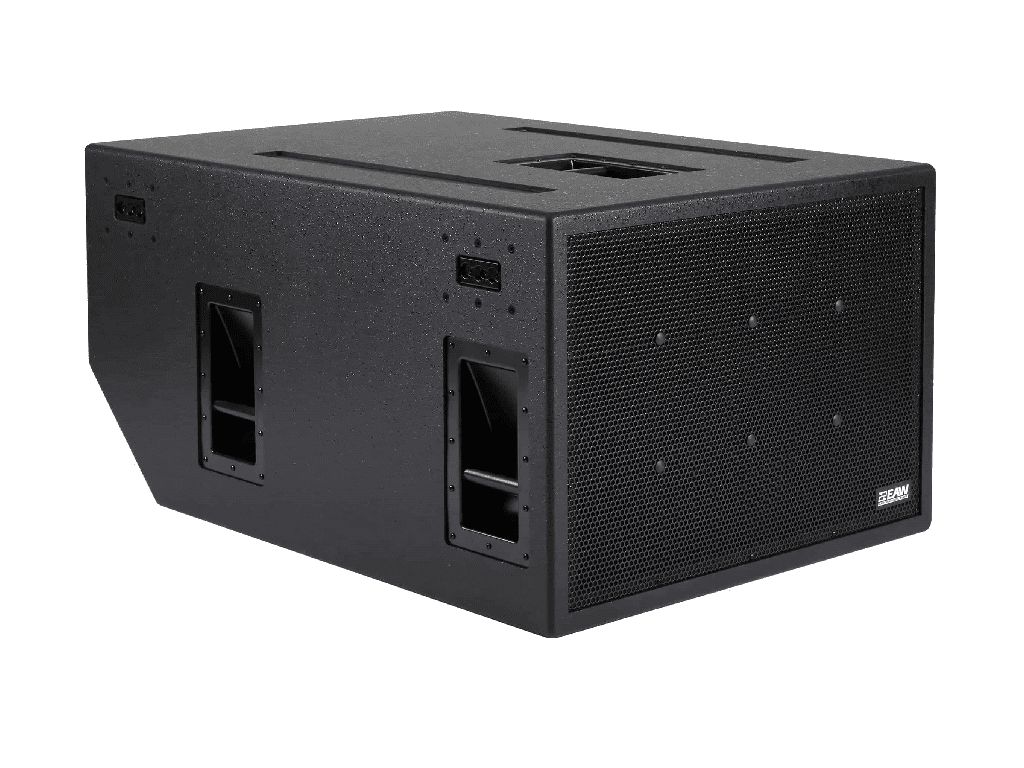

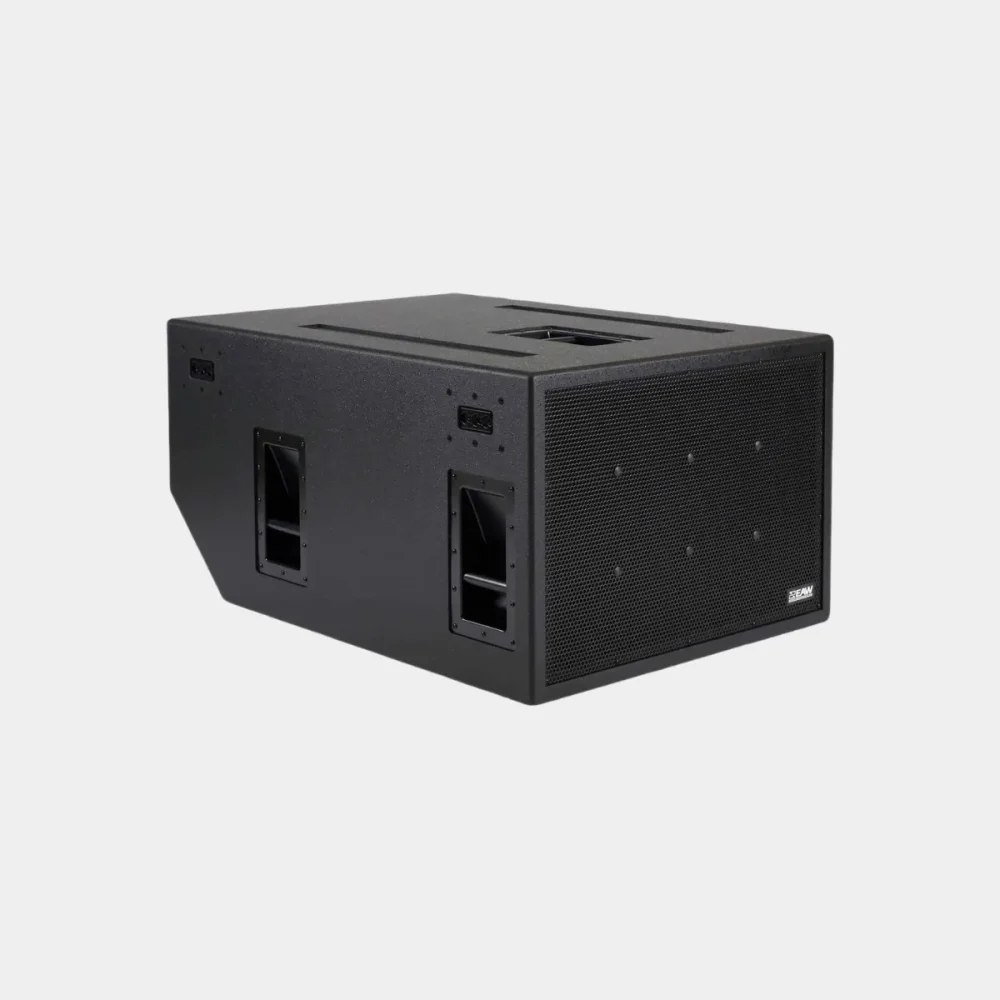

The EAW SB1000z is a portable dual 18" subwoofer from the Stadium Array Series, with two 18" drivers on slanted internal baffles in a vented Baltic birch plywood enclosure, a layout that maximises cone area and minimises frontal area for building large subwoofer arrays. Response is 30 Hz - 100 Hz (± 3 dB) with the recommended processing, and a 20 Hz, 24 dB/octave high-pass filter is specified. The drivers take 2,000 W AES as a single 4 Ω load or as two 8 Ω loads for dual-amp operation, for a calculated peak output of 138 dB SPL at 1 m. The cabinet weighs 85.5 kg.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
