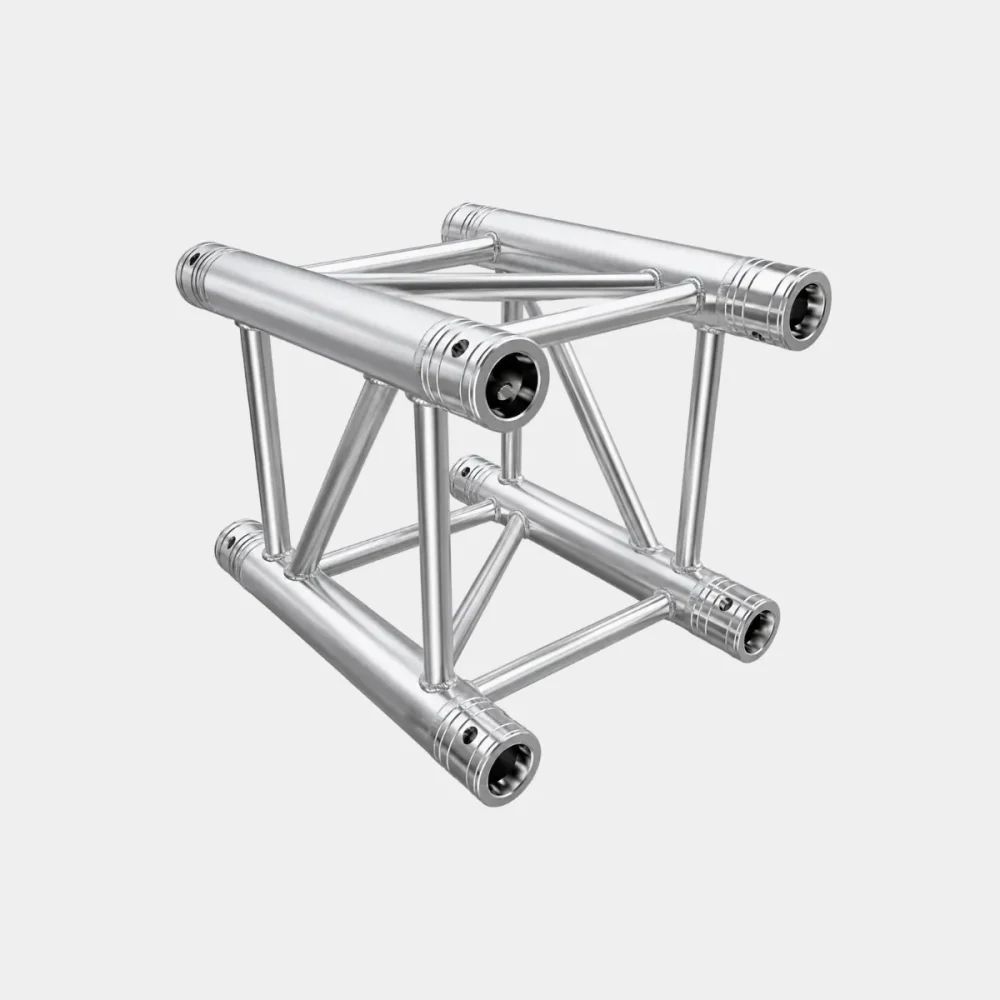

Duratruss DT 34-050 - 0.5m
Specifications
- 290 x 290 mm section, 500 mm long
- 50 x 2 mm main tubes, 20 x 2 mm braces (EN-AW 6082 T6)
- Weight 3.8 kg
The Duratruss DT 34/2-050 is a 0.5 m straight section of DT 34/2 four-point (square) truss, 290 mm x 290 mm in section, built from four 50 mm x 2 mm aluminium main tubes with 20 mm x 2 mm braces in EN-AW 6082 T6 alloy. Sections join with conical connectors secured by bolts and locking pins, and each piece is supplied with 4 conical connectors, 8 bolts and 8 locking pins. The 500 mm length (measured without connectors) weighs 3.8 kg and is manufactured to DIN 4112 and DIN 4113-1.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
