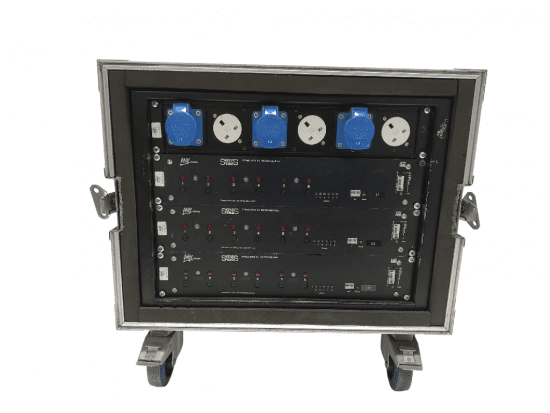

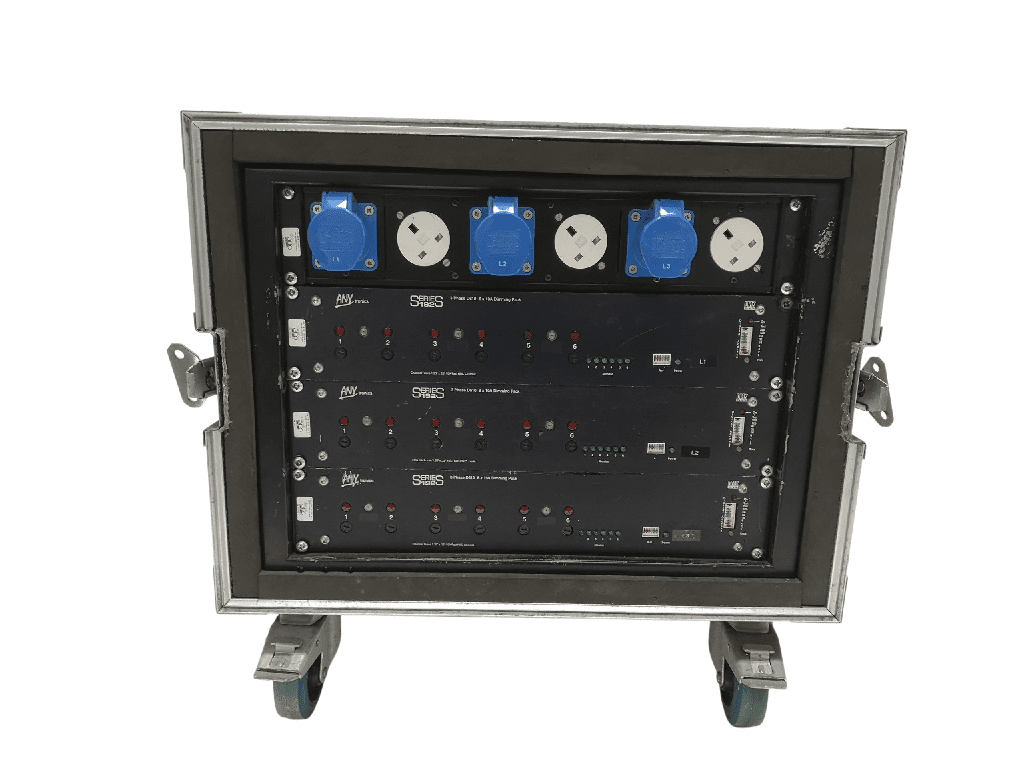

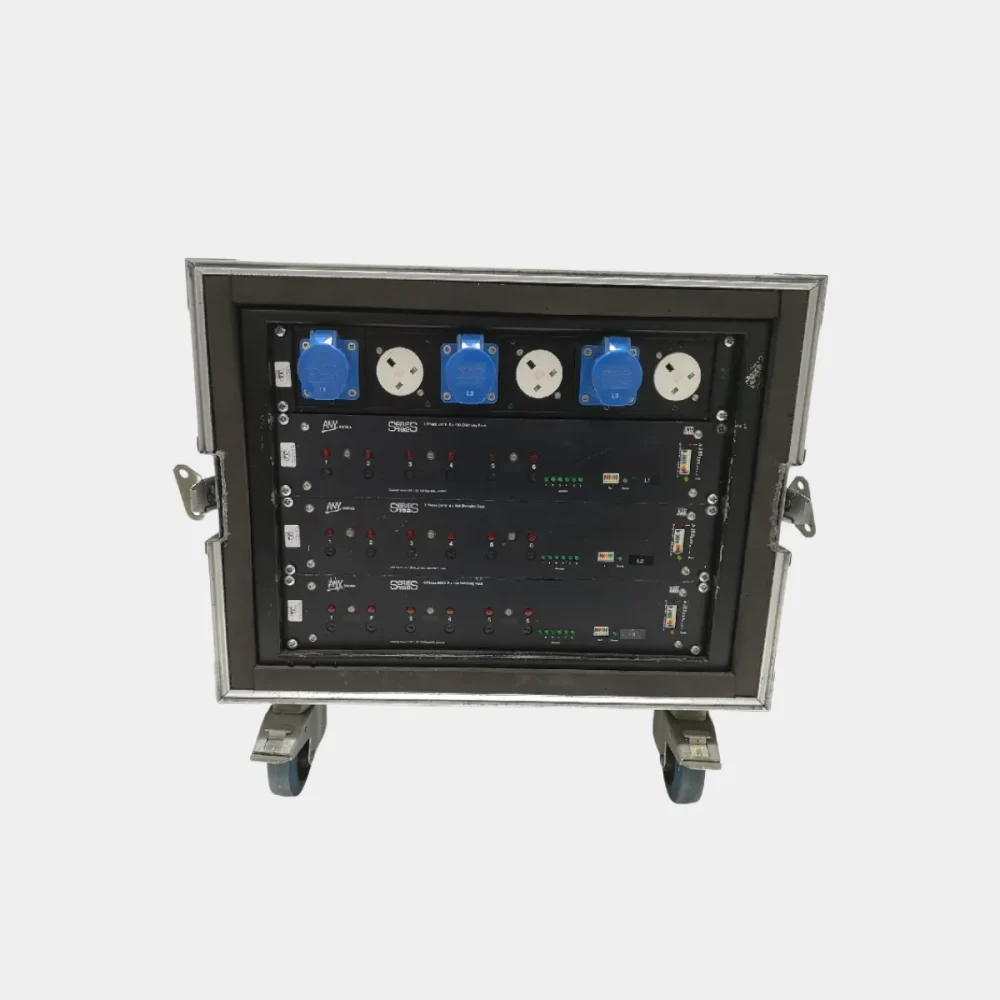

Anytronics Dimmer / Distro Rack - 3 x DP610 (Series 192)
Specifications
- 18 x 10 A dimmer channels (3 x DP610, one pack per phase)
- 6 dimmed Socapex outlets, 2 per pack
- 63 A three-phase in; 63 A 1Ø, 32 A 3Ø, 3 x 16 A and 3 x 13 A out
The Anytronics dimmer and distribution rack is a one-off 19" rack holding three Anytronics DP610 Series 192 dimming packs, giving 18 channels at 10 A with two dimmed Socapex outlets per pack and each pack fed from a separate phase. Anytronics list Socapex among the rear output socket options on Series 192 packs, alongside a circuit breaker on every output channel and a choice of one or two DMX inputs. The rack takes a 63 A three-phase inlet and carries metered mains distribution: one 63 A single-phase and one 32 A three-phase outlet, plus three 16 A and three 13 A outlets.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
