Anytronics D610CB (Series 192)- 63A (6 x 10A) DMX Dimmer
Specifications
- 6 x 10 A dimmer channels, 63 A single-phase supply
- 19" x 2U (483 x 89 mm) rack mounting
- DMX512A on XLR and RJ45, 6 kA ABB breaker per channel

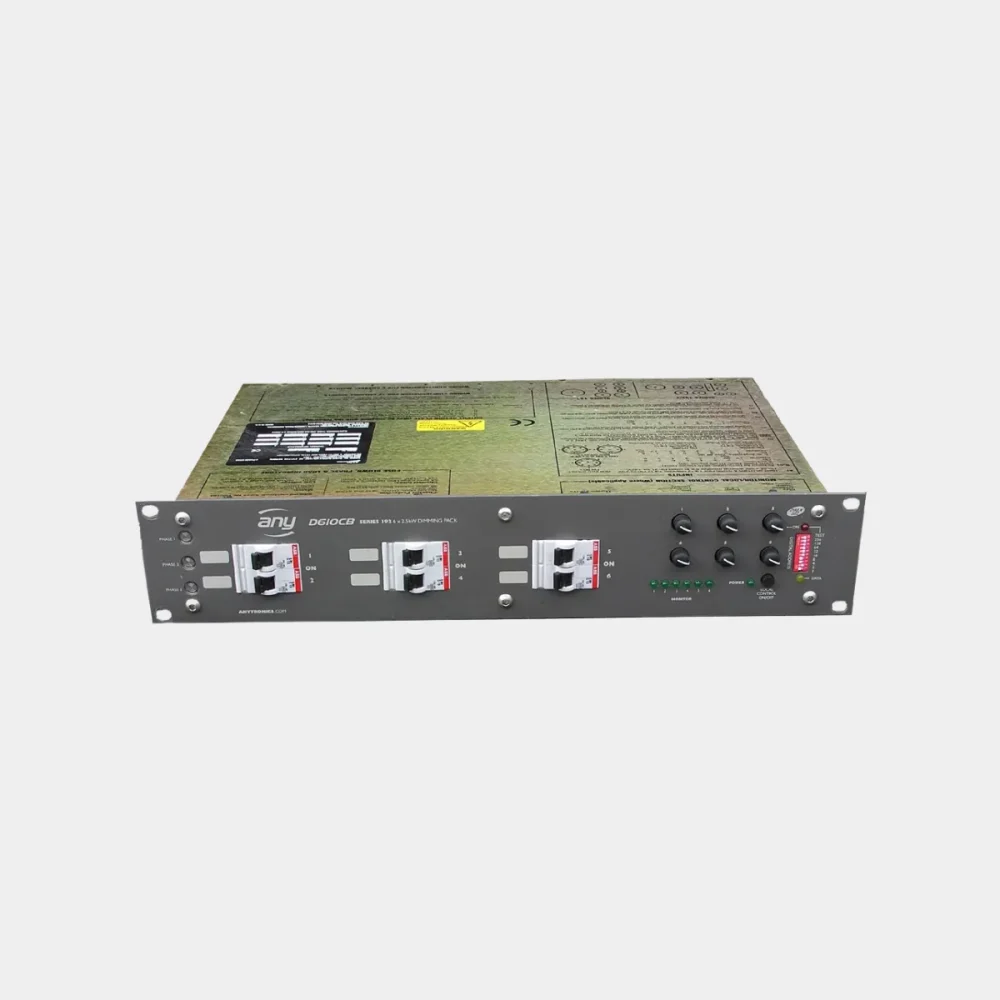

The Anytronics D610CB is a six-channel dimming pack from the Series 192 range, rated at 10 A per channel on a 63 A single-phase supply. It mounts in a 19" rack and is 2U high (483 x 89 mm), with a 6 kA ABB circuit breaker on every channel. Series 192 packs run from 200 - 250 V, 46 - 64 Hz in 1, 2 or 3 phase star connection, take DMX512A on XLR and RJ45, and can be ordered with Socapex outlets on the rear panel. An LCD menu sets dimming or switching, preheat and maximum level per channel and the DMX address, and front panel level controls are a factory option on six-channel models.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
