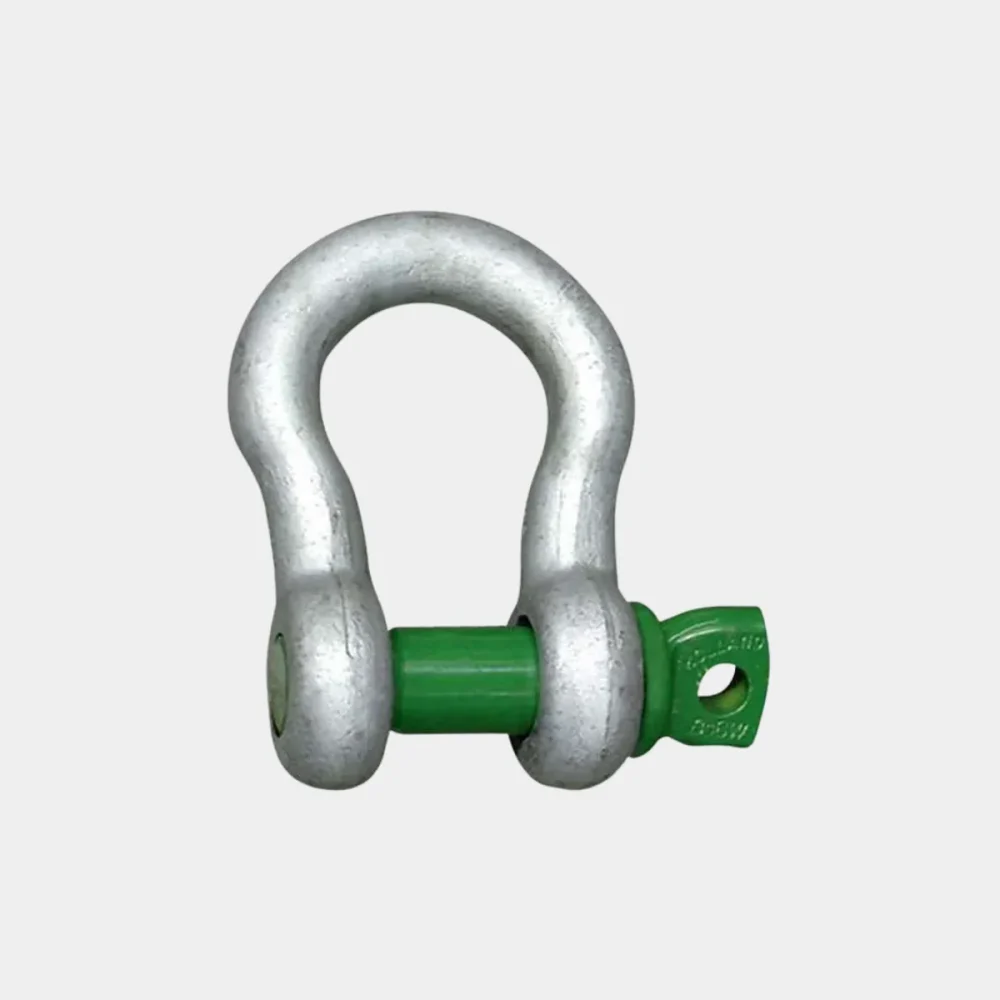

Alloy Bow Shackle
Specifications
- Bow (anchor) pattern
- WLLs stocked - 250, 500, 750, 1000, 1500, 2000, 3250, 4500, 4750 and 8500 kg
- D-shackles also stocked at 1000, 2000 and 2700 kg
The Alloy Bow Shackle is a bow-pattern (anchor) shackle used to connect rigging components such as slings, steels and hoist hooks. The rounded bow gives more room inside the shackle than a D-shackle, so it can take more than one sling eye or a wider fitting. Cloud One's stock record lists bow shackles at ten working load limits, from 250 kg up to 8,500 kg, with the 1,500 kg and one 3,250 kg line kept separately as installation types. The size supplied depends on the load and on what it has to connect.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
