Yamaha SB168-ES
Specifications
- 16 remote mic inputs with HPF, 8 line outputs
- EtherSound IN / OUT; 48 kHz internal
- 3U, 480 x 132 x 359.7 mm, 8 kg

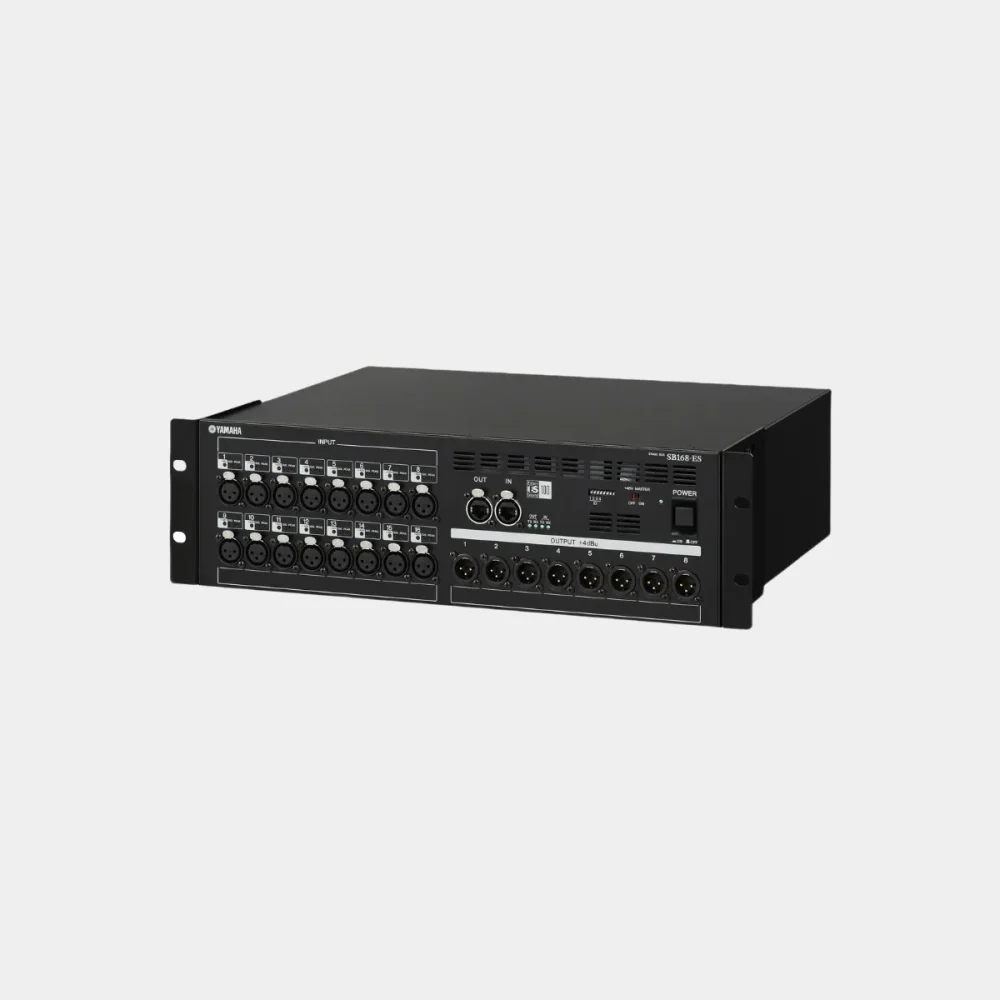

The Yamaha SB168-ES is an EtherSound stage box with 16 remote-controlled mic inputs and 8 line outputs, in a 3U rack chassis measuring 480 x 132 x 359.7 mm excluding the rubber feet. Each input has a high-pass filter and individually switched +48 V phantom power, and conversion is 24-bit with 128-times oversampling on both the AD and DA side. It links to the console on EtherSound IN and OUT ports; Yamaha specifies it as the physical I/O for the M7CL-48ES, which carries no local mic inputs of its own. The box runs at 48 kHz internally, weighs 8 kg and draws 65 W.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
