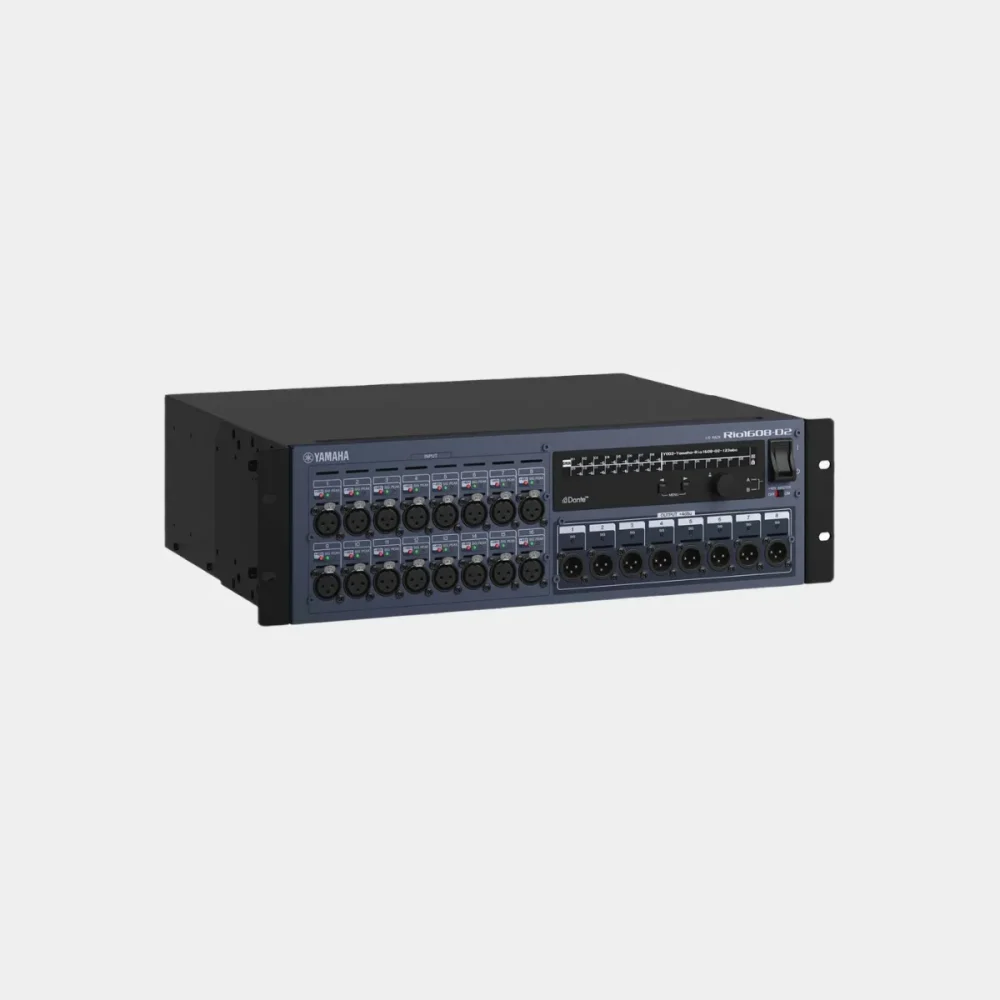

Yamaha Rio1608-D2

Yamaha’s Rio1608-D2 is a 3U rack-mountable, remote I/O, designed to work seamlessly alongside QL and CL ranges of digital mixing consoles as well as RIVAGE and PM series consoles. With 16 balanced analogue XLR inputs and 8 balanced XLR outputs the Rio1608-D2 can be utilised as a stage box to reduce the audio cable runs to the front of house mixer. Equally it could be positioned in the live room of a studio with the benefits of a single DANTE network cable run back to the control room console. The DANTE network protocol gives flexibility in terms of scalability whereby a user can link multiple Rio interfaces to their QL mixing console to increase the number of I/O connections available.

Sampling rates of 44.1kHz, 48kHz, 88.2kHz and 96kHz are supported in the Rio1608-D2 and across the R series I/O racks. To retain a consistently transmitted sound level when multiple compatible mixing consoles are connected to a single Rio1608-D2, a digital-stage gain compensation feature automatically compensates for analogue gain adjustments made by the operator. Operation can be handled without the need for a QL series console via the R Remote application for Mac OS X
