Soundcraft GigRac 1000st - 8:2
Specifications
- 8 inputs (combo XLR/jack)
- Power output - 2 x 500 W @ 4 Ω
- 2 x 7-band graphic EQ (main and monitor), 10 digital effects

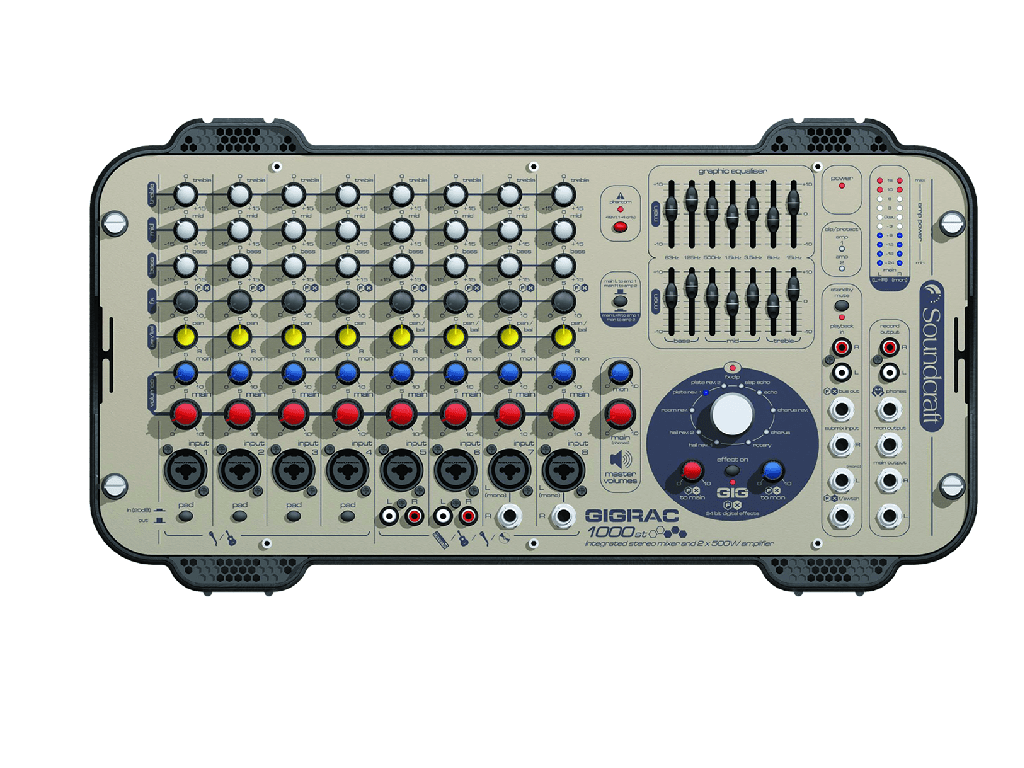

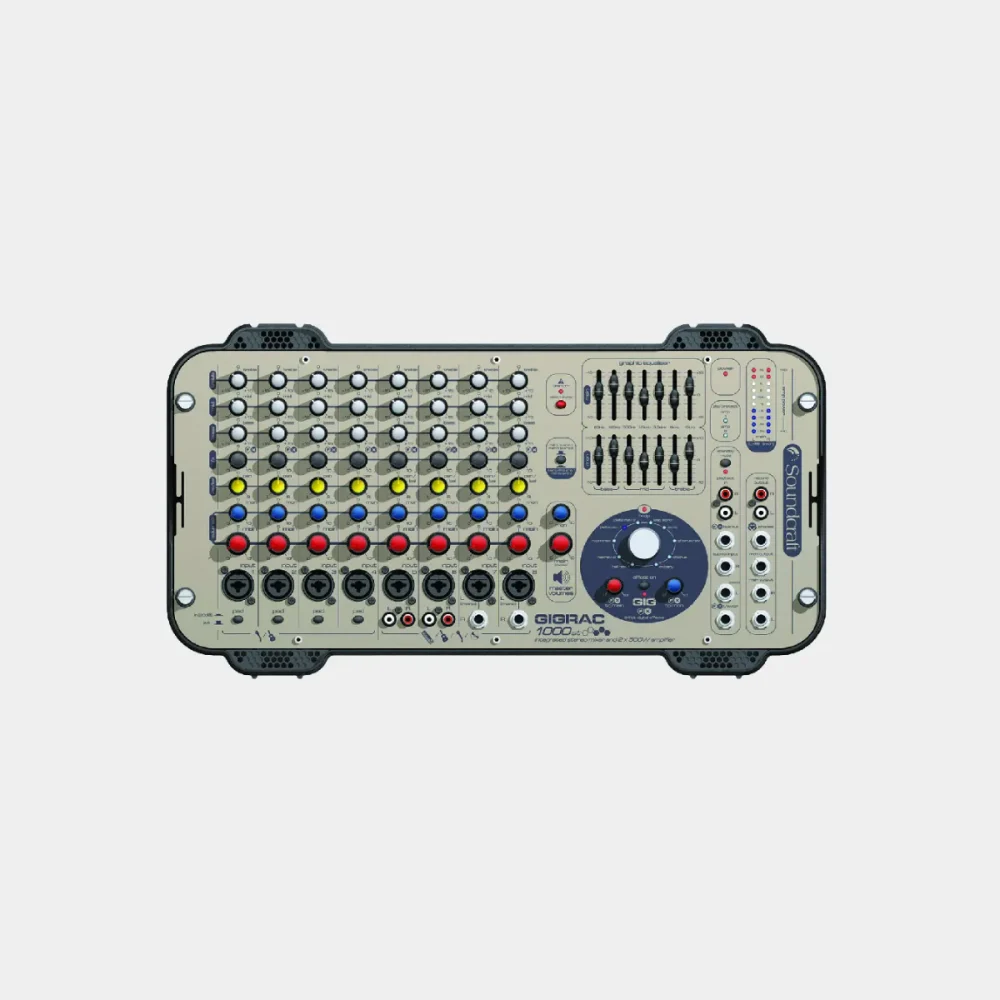

The Soundcraft GigRac 1000st is a powered mixer with 8 input channels on combination XLR/jack connectors and two built-in power amplifiers rated at 2 x 500 W into 4 Ω. Channels 1-4 take mono microphone or line signals with 48 V phantom power and a 20 dB pad, and channels 5-8 also accept stereo line sources. A source switch routes either main left/right or a mono main mix plus the monitor mix to the two amplifiers, each path passing through its own 7-band graphic equaliser. Speaker outputs are on Speakon and jack connectors (4 Ω minimum load).
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
