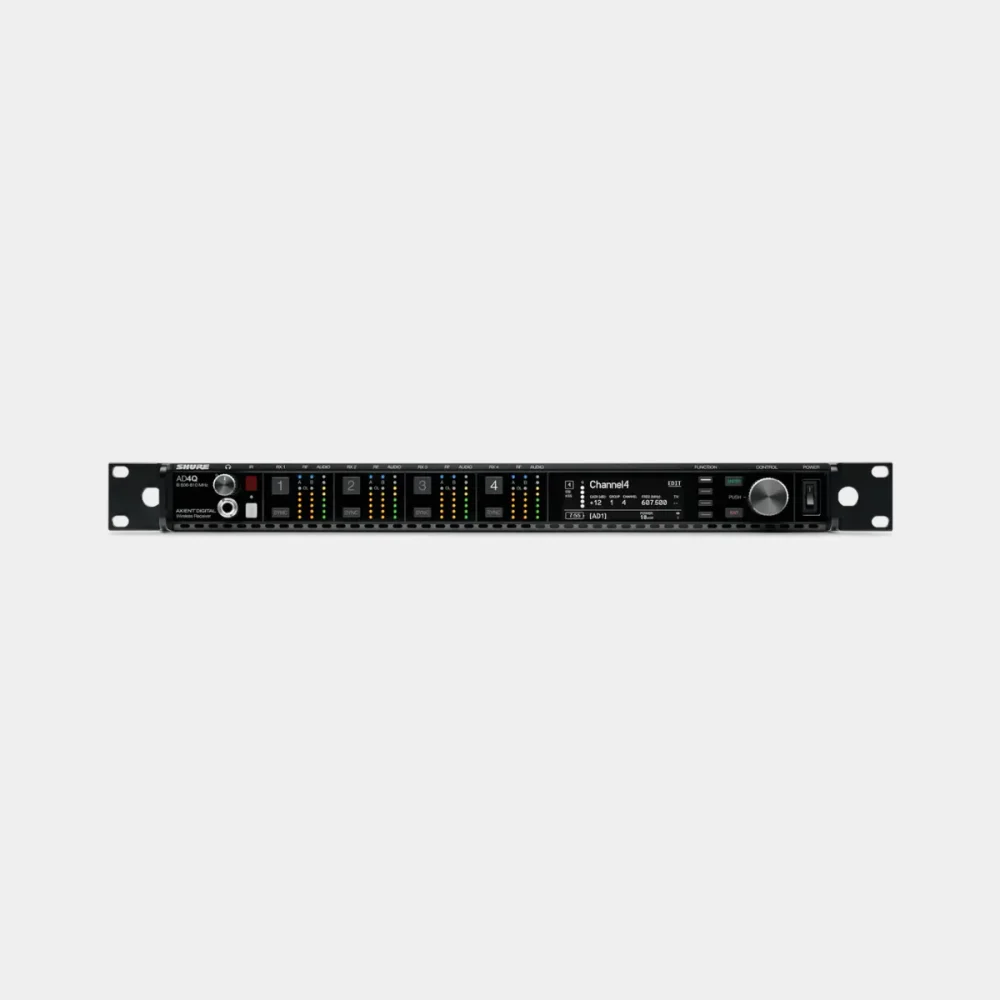

Shure AD4QUK - A Four-Channel Digital Wireless Receiver
Specifications
- Four channels in 1U - 44 x 483 x 333 mm, 4.8 kg
- Band A - 470 - 636 MHz tuning range
- 4 x XLR and 4 x 1/4" outputs, 3 and 4 switchable to AES3; Dante
The Shure AD4Q is a four-channel Axient Digital wireless receiver in a single rack space, measuring 44 x 483 x 333 mm and weighing 4.8 kg without antennas. The A hardware variant tunes 470 - 636 MHz, which matches the G56 transmitters. Outputs are four transformer-balanced XLR and four transformer-balanced 1/4" jacks, with outputs 3 and 4 switchable to AES3 digital, alongside two Dante Ethernet ports and two network control ports with PoE. Quadversity mode reconfigures the RF ports to take four antennas, and each channel has 60 dB of gain adjustment and AES 256 encryption.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
More Audio Equipment
L-Acoustics KARA II
The L-Acoustics KARA II is a two-way line source element with two 8" neodymium cone drivers and one 3" neodymium diaphragm compression driver. Panflex variable L-Fins set the horizontal directivity to 70 or 110° symmetric, or 90° asymmetric. The four-point captive rigging system allows inter-enclosure angles from 0 to 10°, and the enclosure weighs 26 kg and connects on two 4-point speakON sockets. It is driven by the LA4X, LA8 or LA12X amplified controller.
View details →
Yamaha DM7 Compact
The Yamaha DM7 Compact is a digital mixing console with 72 mono input channels, 48 mix buses, 12 matrices, two stereo buses and two cue buses. The surface has 12 channel faders plus four masters, 12.1-inch and 7-inch multi-touch displays, 16 analogue inputs, 16 analogue outputs, a two-channel AES/EBU output and one PY slot. Dante primary and secondary ports carry 144 input and 144 output channels, and Split Mode allows front of house and monitors to run from one surface. A dual power supply is built in, the Dan Dugan automixer covers 64 channels, and the RK1 kit rack-mounts it.
View details →
L-Acoustics KS28
The L-Acoustics KS28 is a subwoofer with two 18" neodymium cone drivers in a bass-reflex enclosure fitted with L-Vents laminar vents to reduce port turbulence. Its low frequency limit is 25 Hz at -10 dB, and it can be set for standard or cardioid directivity by combining the physical deployment with the matching preset. The cabinet is Baltic beech and birch plywood, rated IP55, measures 1340 x 550 x 719 mm and weighs 79 kg. Connection is on a single 4-point speakON socket and it is driven by the LA12X amplified controller.
View details →
