2 x Sennheiser Antenna Splitter ASA 1
If you’re interested in this item, please contact us for a quote or add it to cart and finish the order. Our team will contact you with a quote.
Product description

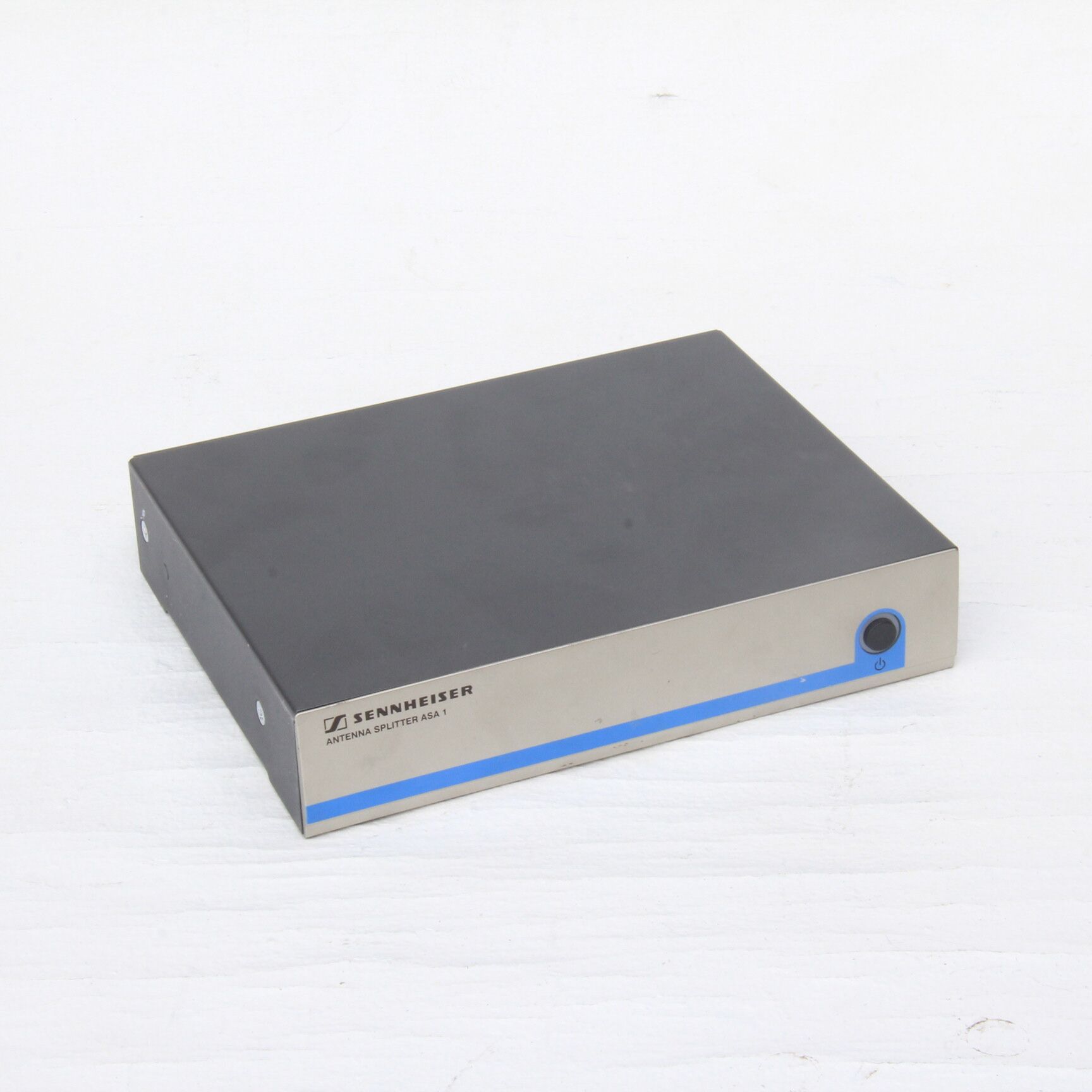

The Sennheiser ASA 1-1G8 Active Antenna Splitter is an active antenna splitter, with a frequency range of 1785-1800MHz, 50 Ohm impedance, and dimensions of 212 x 168 x 43 mm. The active antenna splitter of the 1G8 series feeds the RF signal of two receiving antennas to up to four ew 100 G3-1G8 diversity receivers (2 x 1:4). These receivers, plus up to two antenna boosters per diversity branch, are supplied with power via the splitter. For the set-up of an eight-channel system, two splitters can simply be cascaded. Due to its integrated RF amplifiers, the ASA 1-1G8 splitter does not introduce any RF signal loss. It
comes complete with eight short BNC cables for connecting the receivers.
Technical Specifications
- Antenna splitter: 2 x 1:4 or 1 x 1:8, active
- Frequency range: 1785 to 1805MHz
- Gain: 0dB (+/- 1dB)
- IIP3: min. 20dBm, typ. 23dBm
- Impedance: 50 ohms
- Operating voltage: 13.8V DC (with NT 1-1 PSU, to be ordered separately according to country version)
- Current consumption: 350mA
