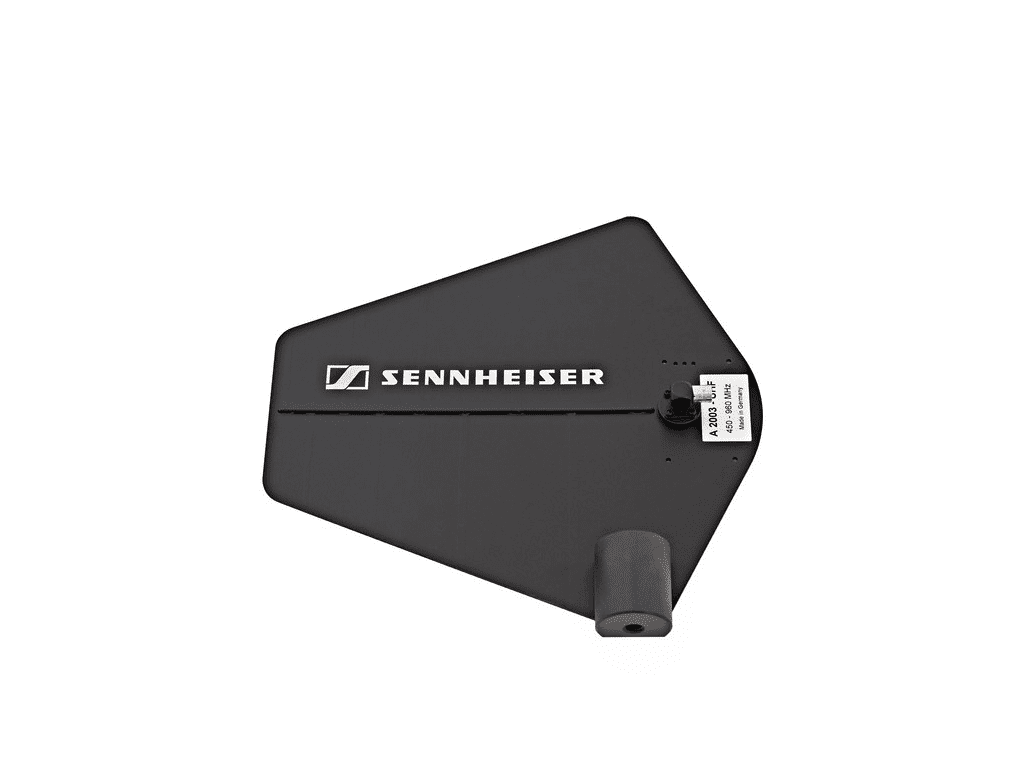

Sennheiser A2003 Passive Antenna
Specifications
- 450 - 960 MHz, passive directional
- Gain approx. 4 dB, apex angle approx. 100°
- Front/back ratio > 14 dB, 50 Ω BNC connector
The Sennheiser A 2003-UHF is a passive directional antenna used for both transmitting and receiving between 450 and 960 MHz. Its apex angle is approximately 100° with a front-to-back ratio greater than 14 dB and gain of approximately 4 dB, and it connects through a 50 Ω BNC jack. It mounts on a standard microphone stand and is listed for use as a transmitting antenna with Sennheiser SR 300, SR 3054 and SR 3056 IEM transmitters, and with evolution wireless, 3000 and 5000 series receivers.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
