Lab Gruppen PLM 10000Q
Specifications
- Two input channels, four output channels
- Power output - 4 x 2,300 W @ 4 Ω; peak total 10,800 W
- Lake processing with Dante networking as standard

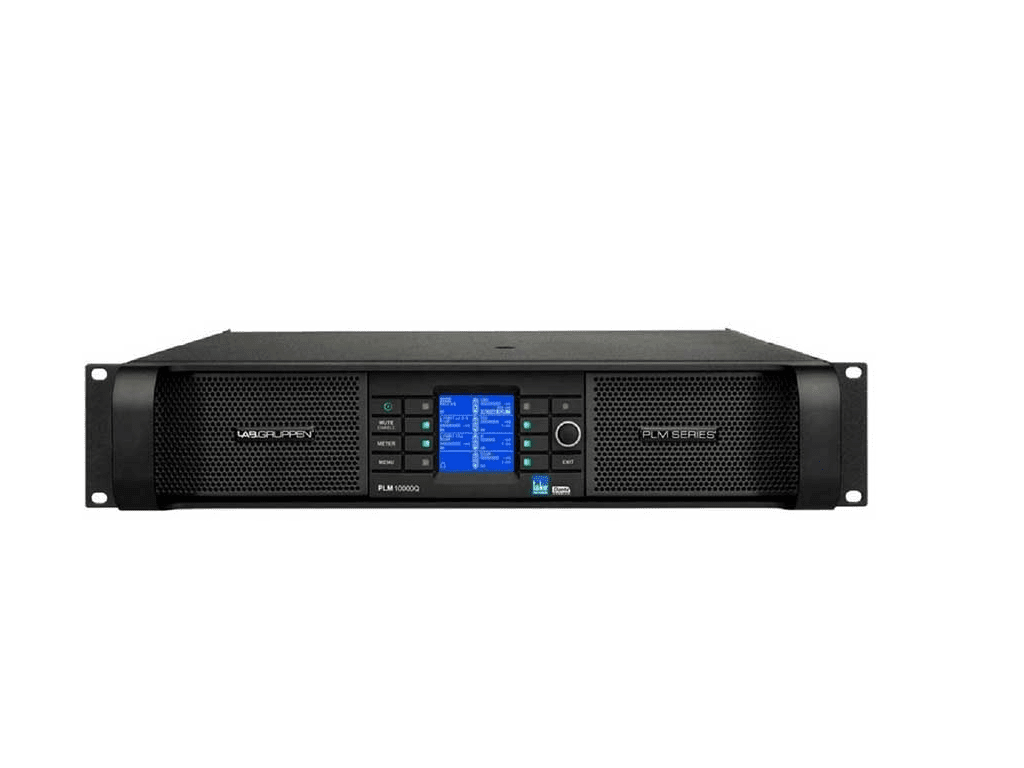

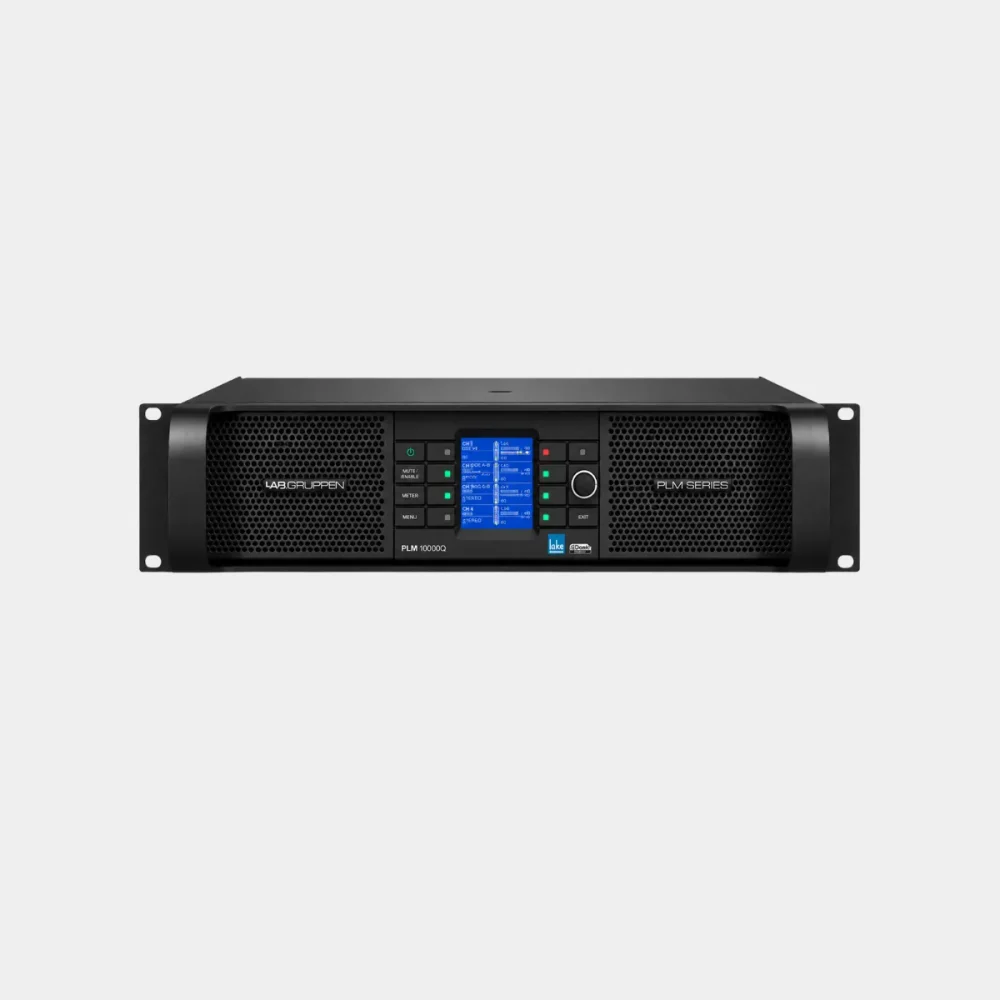

The Lab.gruppen PLM 10000Q is a two-input, four-output powered loudspeaker management system that combines networked signal distribution, Lake drive processing, Class TD amplification and load verification in one 2U, 13.5 kg unit. Peak total output is 10,800 W with all channels driven, or 2,350 W per channel into 2 Ω and 2,300 W per channel into 4 Ω. Dante network audio is included as standard, alongside two analogue XLR inputs with switchable Iso-Float and two AES/EBU channels. Speaker outputs are specified at order as binding posts or Neutrik speakON, one NLT8 plus two NLT4.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
