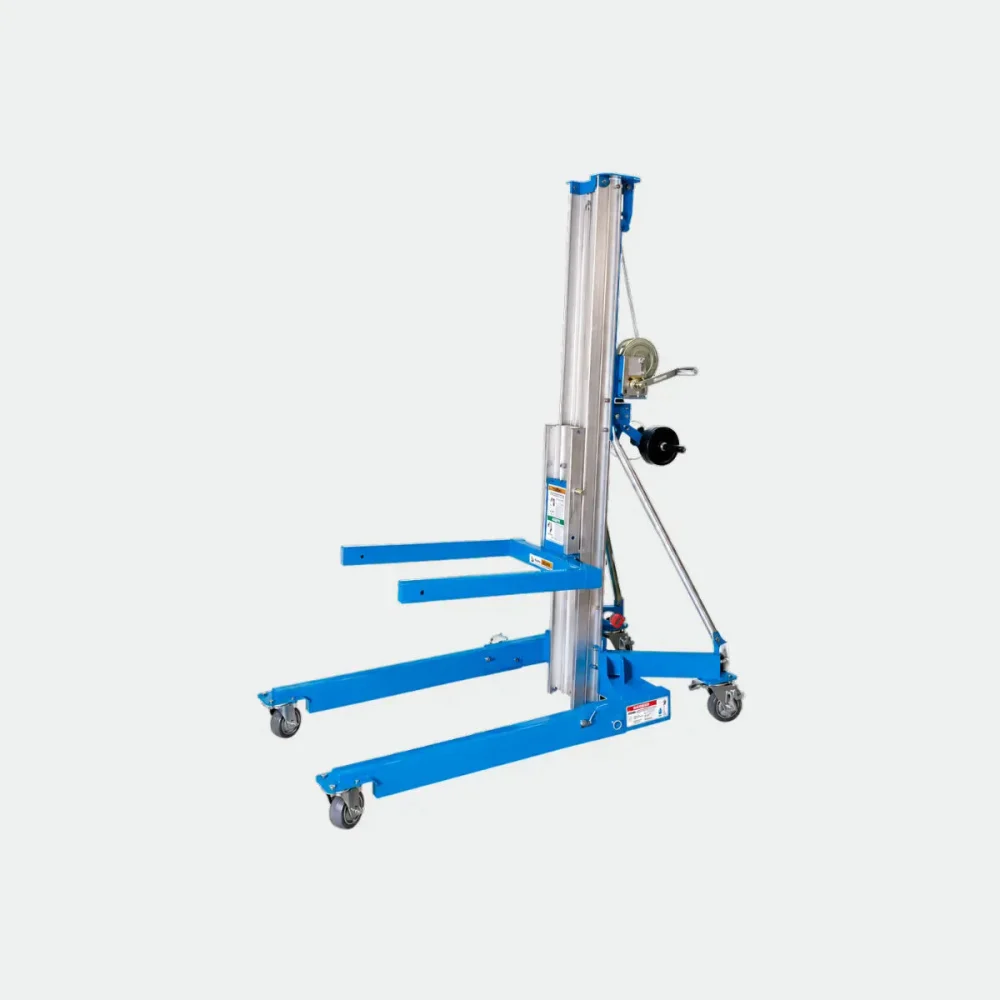

Genie SLA-20 Superlift
Specifications
- Max lift height 6.46 m
- Load capacity 363 kg (46 cm load centre)
- Weight 184 kg, stows 1.99 m x 0.80 m
The Genie SLA-20 Superlift Advantage is a manually operated, push-around material lift with an aluminium telescoping mast raised by a two-speed hand winch that locks the load in place. With the standard forks raised it lifts to 6.46 m and carries up to 363 kg at a 46 cm load centre. It stows at 1.99 m high, 0.80 m wide and 0.74 m long, weighs 184 kg, and is fitted with a stabiliser set as standard. It takes attachments including adjustable forks, fork extensions, a boom and a load platform.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
More Rigging Equipment
LITEC Flyintower Compact 6m
The LITEC Flyintower Compact is a ground-support lifting tower for loudspeaker systems, built on QX30SA 300 truss and raised with a manual hoist. Compact is LITEC's own name for the Flyintower 6-300. It reaches a maximum tower height of 6 m, lifts up to 300 kg and weighs 70 kg. Dismantled it packs into 0.4 m³, small enough for a single flightcase holding every part except the vertical trusses. LITEC limit the wind-exposed surface of the suspended load to 2.5 m², with ballast set according to wind speed.
View details →
PA Tower - 9.8m
The Alustage PA Tower is a wind-up lifting tower used to raise loudspeaker systems, including line arrays, above an audience. Cloud One's stock record identifies it as an Alustage tower: a mast of Quadro 390 truss on a PDS 05.01 HD tower base, with an NDS 390.06.00 header block at the top and a hand-cranked PDS 12.00 winch assembly, braced by 2.6 m legs and RP-Fi50 diagonal braces. Each leg frame is ballasted with a 600 litre water tank. The 9.8 m in the name is the maximum trim height, the height the load is hoisted to, not the height of the tower.
View details →
CM Lodestar 1T Motor
The Columbus McKinnon CM Lodestar is an electric chain hoist (chain motor) for entertainment rigging, and this unit is the 1000 kg capacity version. Columbus McKinnon lists two 1000 kg models: Model L lifting at 4 m/min with a 1 HP motor, and Model LL at 8 m/min with a 2 HP motor, both running on 400 V three-phase 50 Hz at a 40% duty cycle (FEM class 2M). The hoist runs on 7.9 x 21.7 mm zinc-plated load chain (1.65 kg per metre, 8:1 safety factor) through a five-pocket liftwheel, has a DC brake and an adjustable clutch, is rated IP65, and complies with BGV-D8, BGV-D8+ and igvw SQ P2.
View details →
