D&B D20
Specifications
- Power output - 4 x 1000 W @ 4 Ω (CF 6 dB) / 4 x 1600 W @ 4 Ω (CF 12 dB)
- 4 x analogue + 4 x AES3 inputs; NL4 outputs (NL8 option)
- 2U, 10.8 kg; 100 - 240 V active PFC supply

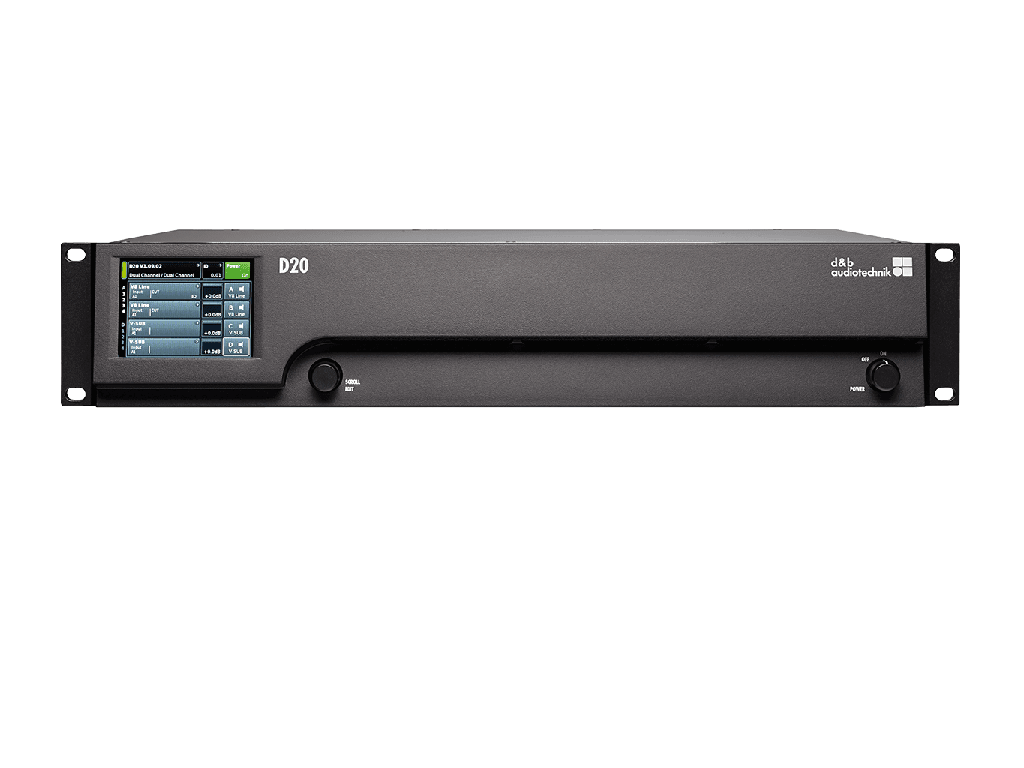

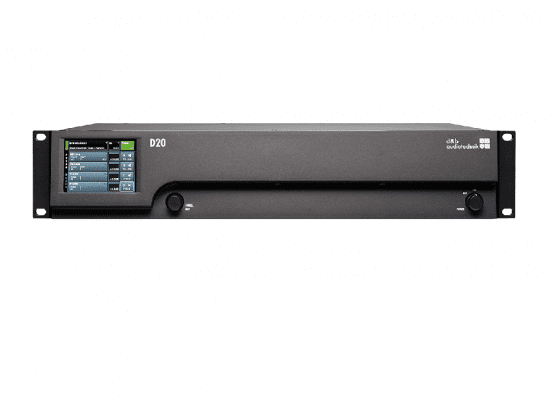

The d&b audiotechnik D20 is a four-channel 2U Class D power amplifier with the d&b DSP platform, containing loudspeaker configurations for current d&b cabinets (except the J-Series, M2 and SL-Series) plus a linear mode. Each channel produces 1000 W into 4 Ω at 6 dB crest factor, from four analogue XLR and four AES3 digital inputs feeding NL4 outputs. Each channel also has up to 10 s of signal delay and two 16-band equalisers with parametric, shelving or notch filtering.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
