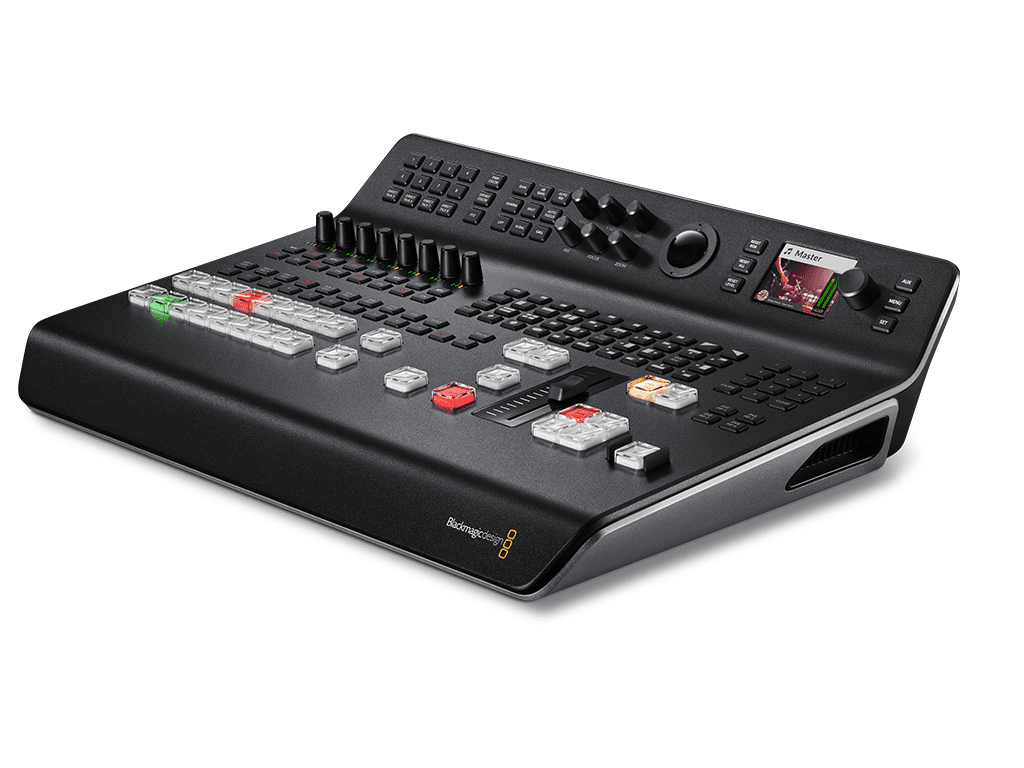

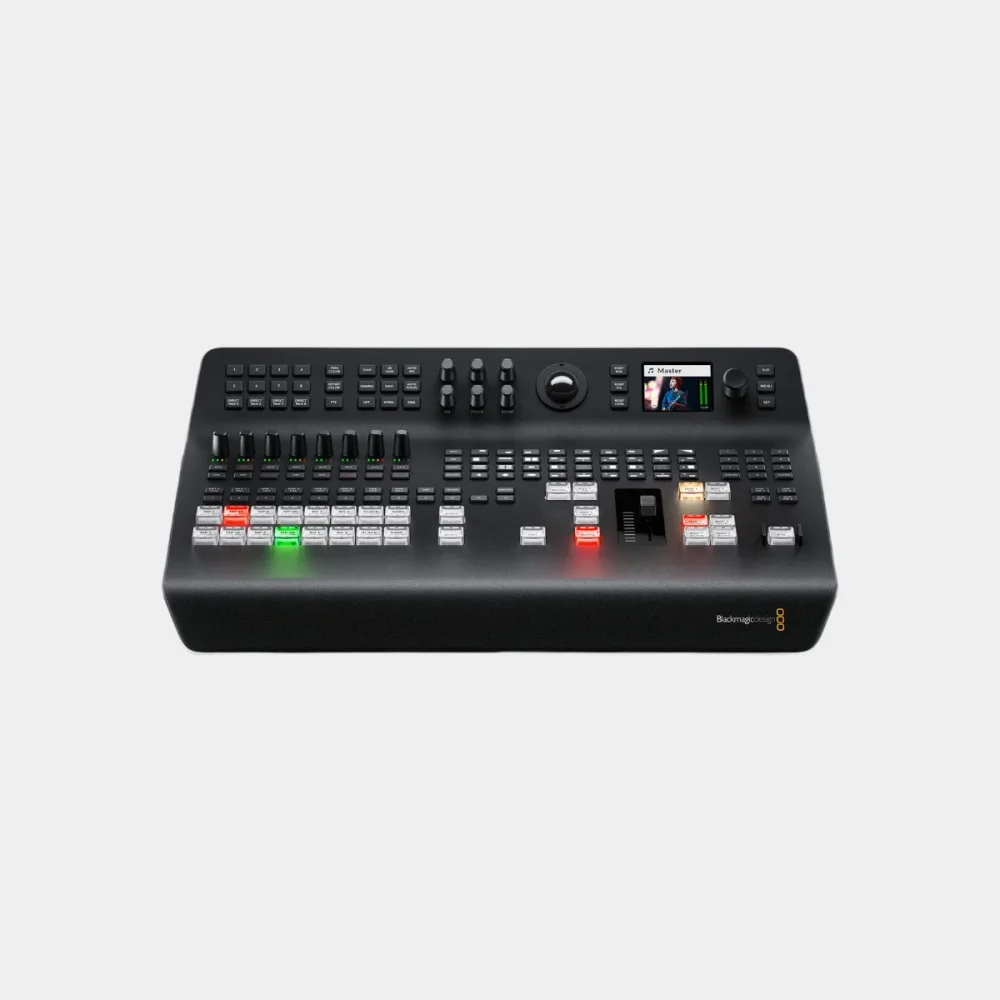

Blackmagic ATEM Television Studio Pro HD
Specifications
- 8 inputs - 4 x SDI + 4 x HDMI, re-sync on all inputs
- 5 x SDI programme out, 1 aux, SDI and HDMI multiview at 10 views
- SD and HD to 1080p59.94, 40 W
The Blackmagic Design ATEM Television Studio Pro HD is a discontinued HD live production switcher with a hardware control panel built into the chassis. It has 8 video inputs, 4 SDI and 4 HDMI, with re-sync on every input, and works in SD and HD up to 1080p59.94. Outputs are 5 SDI programme feeds, 1 aux, and separate SDI and HDMI multiview feeds carrying 10 views. Audio runs through a 10-input two-channel mixer fed from 2 XLR inputs, and the switcher carries 2 flash media players, a DVE, one upstream and two downstream keyers, and built-in talkback.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
More Video Equipment

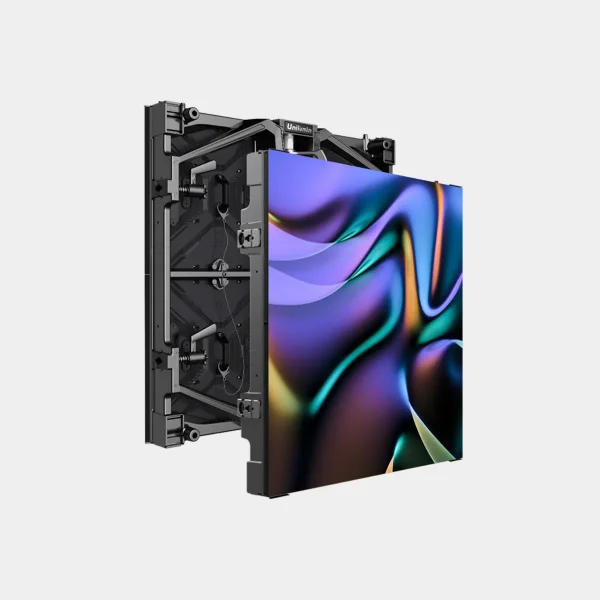

Unilumin UPAD IV LED Video Wall (P1.9)
The Unilumin Upad IV 1.9 is an indoor rental LED video wall panel with a 1.9 mm pixel pitch and 256 x 256 pixels per cabinet, a density of 262,144 pixels per square metre. Each die-cast magnesium cabinet measures 500 x 500 x 70.1 mm and weighs 6.3 kg, with front and rear module access and a fast-lock design for one-person rigging. Angle blocks set curves from -5° convex to +10° concave, and the cabinets also build internal or external 90° corners, ceilings and cross shapes. The panel is rated IP30 for indoor use and carries a NovaStar A10S receiving card.
View details →

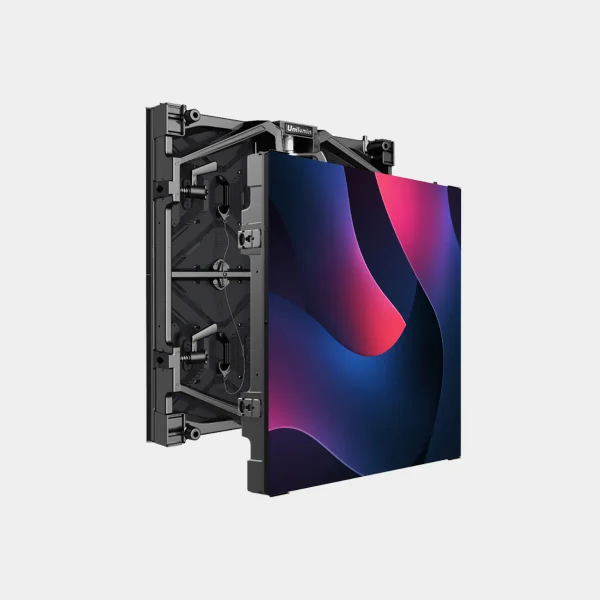

Unilumin UPAD IV2 USHIELD LED Video Wall (P2.6)
The Unilumin Upad IV2 U-shield is the 2.6 mm pixel pitch version of the Upad IV indoor rental LED wall, carrying 192 x 192 pixels per cabinet for a density of 147,456 pixels per square metre. Cabinets are die-cast magnesium, 500 x 500 x 70.1 mm and 6.3 kg each, with front and rear module access. The U-shield lamp package raises the viewing angle to 170° and the LED thrust rating to 13 kg (130 N), against 160° and 2.5 kg for the standard SMD1515 lamp, and covers 96% of DCI-P3. Cabinets curve from -5° convex to +10° concave and build internal or external 90° corners.
View details →

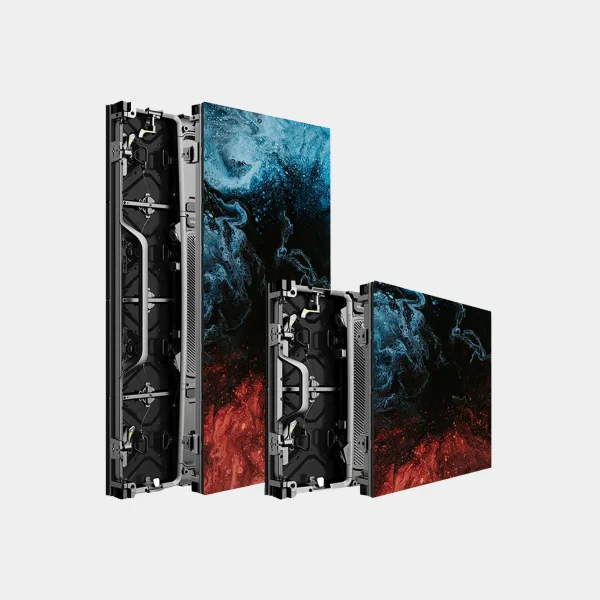

Unilumin P3.9 URM III Indoor/Outdoor LED
The Unilumin URM III P3.9 is a rental LED display panel with a 3.9 mm pixel pitch, built as a die-cast aluminium cabinet of 500 x 500 mm or 500 x 1000 mm and made in indoor and outdoor versions. The outdoor 500 x 500 mm panel carries 128 x 128 pixels for 65,536 pixels/m², is rated IP65 at 4,500 cd/m² and weighs 8.6 kg at 83 mm deep. Cabinets join with a click-lock catch for single-person installation, are serviced from the rear and curve from +10° to -10°. Refresh rate is 3,840 Hz with 14-bit processing, and a 500 x 500 mm panel draws 50 W typical and 170 W maximum.
View details →
