ADB F101 Fresnel
Specifications
- 1000 / 1200 W lamp, GX 9.5 lampholder
- Field angle 13° - 59°, 150 mm Fresnel lens
- 340 x 340 x 420 mm, 6 kg net

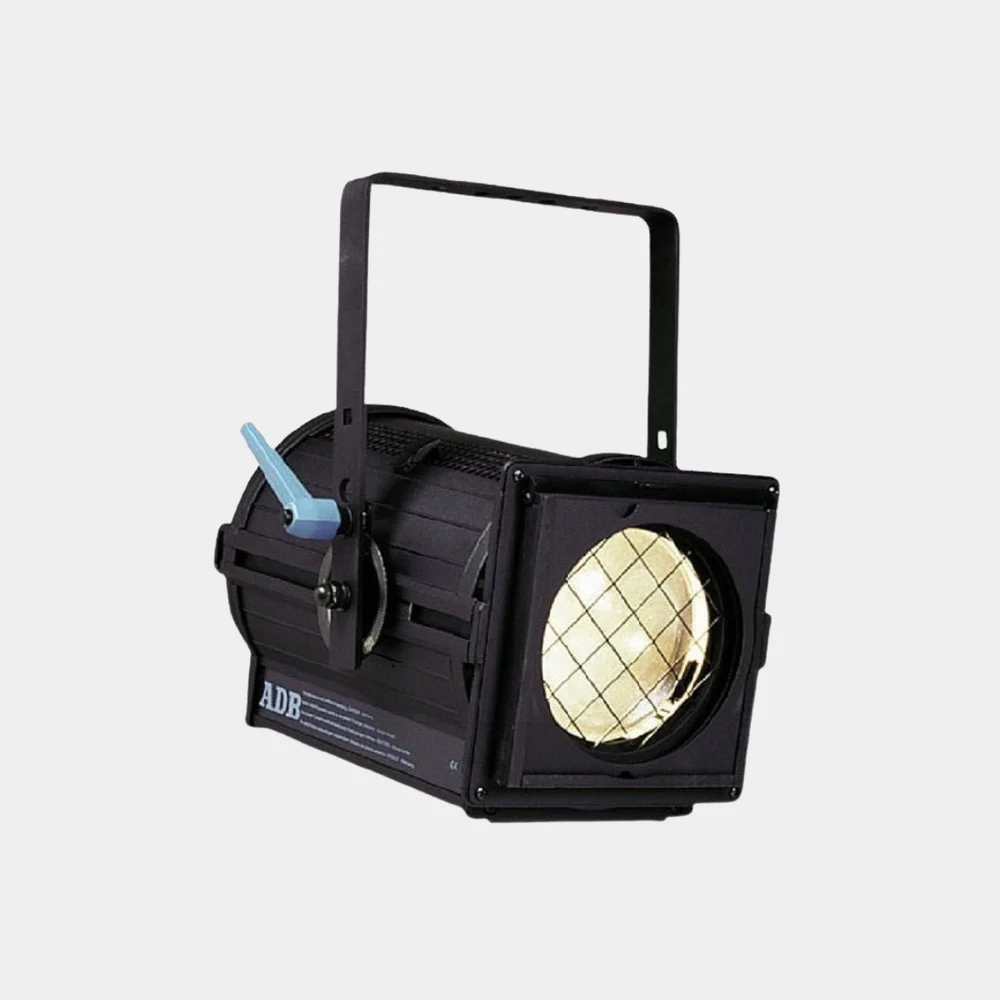

The ADB F101 is a Fresnel spotlight for 1 kW and 1.2 kW tungsten halogen lamps on a GX 9.5 lampholder, used on large stages and in studios. A 150 mm Fresnel lens and a focus knob on the body set the field angle between 13° and 59°. Each yoke arm carries two sets of fixing holes 70 mm apart so the lantern can sit high or low, and the yoke slides along the body so the fixture can be balanced in any position. The filter frame cassette takes 185 x 185 mm (DIN 15560) accessories, and the body measures 340 x 340 x 420 mm at a net weight of 6 kg.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
More Lighting Equipment
Avolites Tiger Touch Pro
The Avolites Tiger Touch Pro is a touchscreen lighting console running the Titan operating software, listed by Avolites as the LV-67H hardware version of the Tiger Touch (serial numbers TT-01220 to TT-01615). The console outputs 12 DMX universes and 6,144 channels, and can be extended to 64 universes with a Titan Net Processor, with Art-Net and CITP support. The rear panel carries four DMX outputs on XLR, MIDI in and out and an SMPTE input. Twenty submasters hold cues, cue lists and chases, alongside ten macro buttons and 1,000 virtual playback executors.
View details →
Robe Led Beam 150
The Robe LEDBeam 150 is a compact LED moving head using 7 x 40 W RGBW multichip LEDs behind a motorised zoom covering 3.8° to 60°. Pan is 450° and tilt 228°, and it runs DMX-512 and RDM in two modes of 22 or 16 control channels, with 8 or 16-bit resolution on pan/tilt, colour, zoom and dimmer. Colour mixing can be RGBW or CMY, with variable CTO from 2,700 K to 8,000 K and tungsten lamp emulation. It draws a maximum of 220 W, has powerCON TRUE1 and 5-pin XLR in and out, and weighs 5.7 kg.
View details →
Robe ColorSpot 250AT
The Robe ColorSpot 250 AT is a moving head spot fixture running a compact metal halide lamp on a magnetic ballast, with a GY9.5 base and the Philips MSD 250/2 as the approved lamp. It carries a 10-filter SLOT&LOCK colour wheel plus open, a rotating wheel of 7 indexable SLOT&LOCK glass gobos plus open, an interchangeable 3-facet rotating prism, motorised focus and full-range dimming with strobe. Control is DMX-512 with RDM on 3-pin and 5-pin XLR in four modes of 14, 16, 18 or 20 channels. Pan is 530°, tilt 280°, the standard objective 15°, and the EU model weighs 20.5 kg.
View details →
