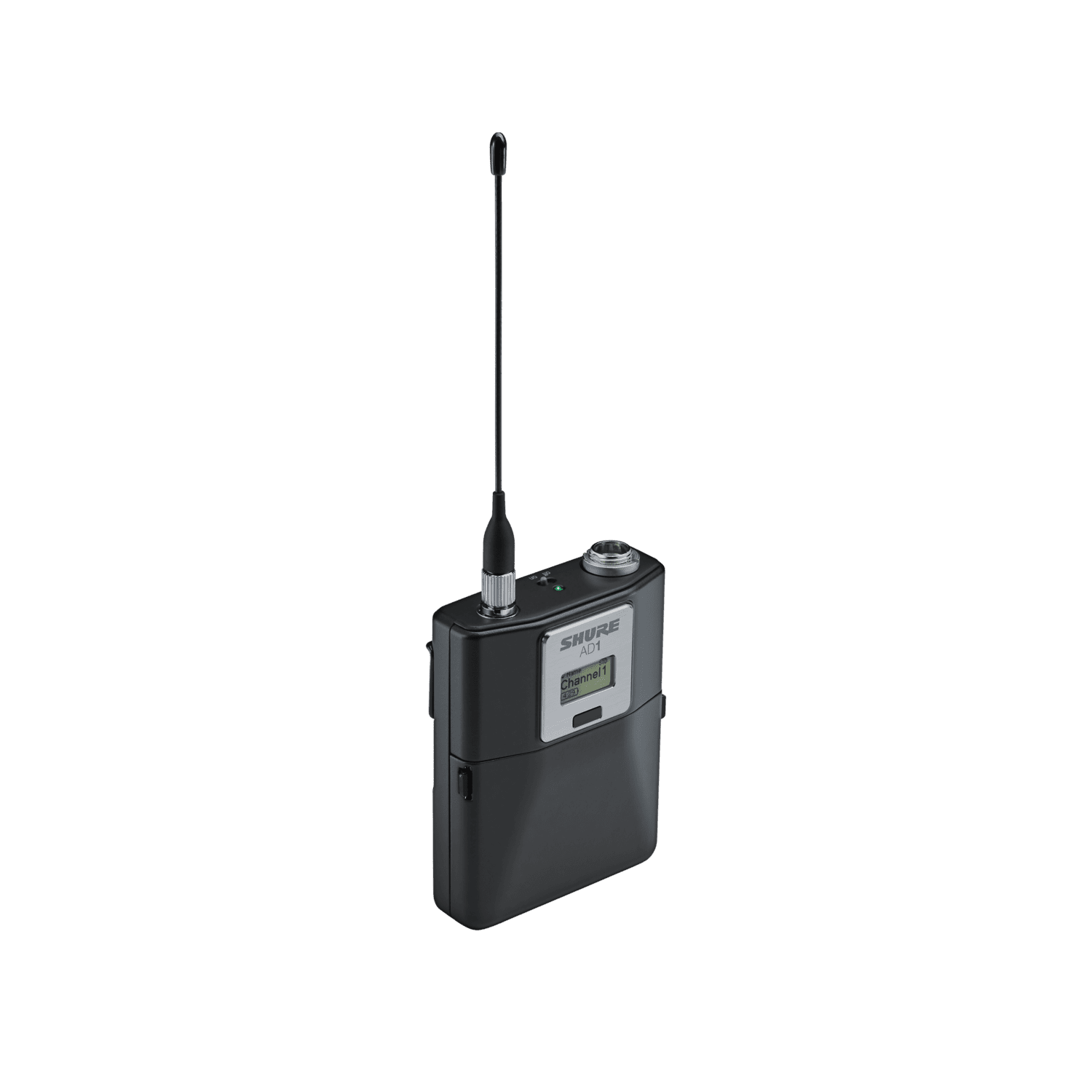

Shure AD1 Bodypack Transmitter (G56)
Specifications
- Band G56 - 470 - 636 MHz
- RF output switchable 2 / 10 / 35 mW
- Up to 8 hours at 10 mW on SB900B or AA batteries
The Shure AD1 is a bodypack transmitter for the Axient Digital wireless system, in a cast metal housing weighing 155 g without batteries. In the G56 band it tunes 470 - 636 MHz, RF output switches between 2, 10 and 35 mW, and the link can run AES 256-bit encryption. Standard and High Density modulation modes are selectable, High Density raising the number of system channels that fit into a given piece of spectrum. It runs on a Shure SB900B rechargeable Li-ion pack or AA batteries for up to 8 hours at 10 mW, and the audio input is a 4-pin TA4M or LEMO connector.
Available for hire across Birmingham and the UK. Need advice? Call 0121 333 7711 or send an enquiry.
